NCAE MCP Server

The NCAE Model Context Protocol (MCP) server lets supported AI applications use selected NCAE services and reports. For example, a user can ask an MCP client to read a report or start a service instance.

Access is allowed only when all three conditions are met:

  1. An NCAE administrator has enabled the MCP server for the NCAE installation.
  2. A user with edit rights has explicitly enabled the individual service or report for MCP.
  3. The signed-in user has the normal NCAE permissions for that object and action.
Enabling an object for MCP does not grant additional NCAE permissions. The MCP server acts as the signed-in user, and NCAE continues to enforce that user’s roles and tenant access.

How authentication works

Enabling the MCP server creates an OAuth application in NCAE and securely provides its application credentials to the MCP server. These credentials identify the MCP server; they do not identify an individual user.

When a user connects an MCP client, such as Claude Code, the client opens the NCAE sign-in and authorization flow. NCAE issues an access token bound to that user. The MCP client stores the token and uses it for later connections. The MCP server then calls the NCAE API as that user, so users do not share an administrator or service account.

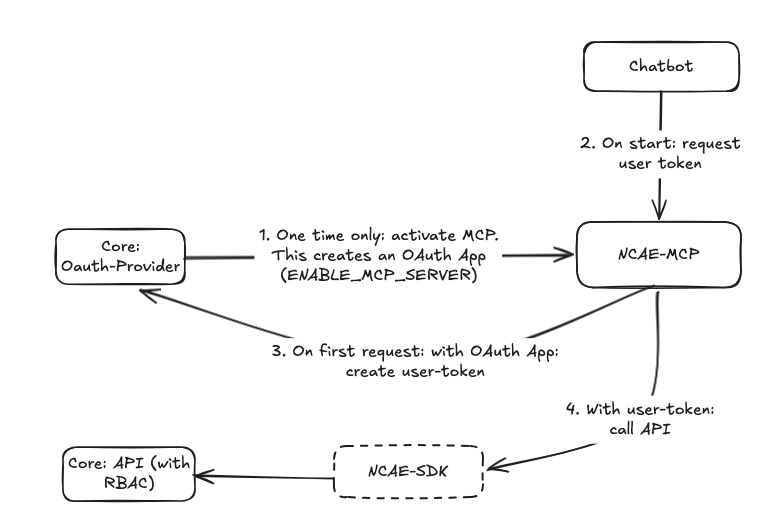

Authentication flow between an MCP client, the NCAE MCP server, and NCAE Core

Treat the MCP client’s profile and credential storage as sensitive. Do not copy a configured client profile to another user or paste access tokens into prompts, chat messages, or project files.

Enable the MCP server

This step requires an NCAE administrator and is performed once for an NCAE installation.

  1. Open Admin > Configuration.
  2. Find ENABLE_MCP_SERVER in the General section.
  3. Select the checkbox and save the configuration.

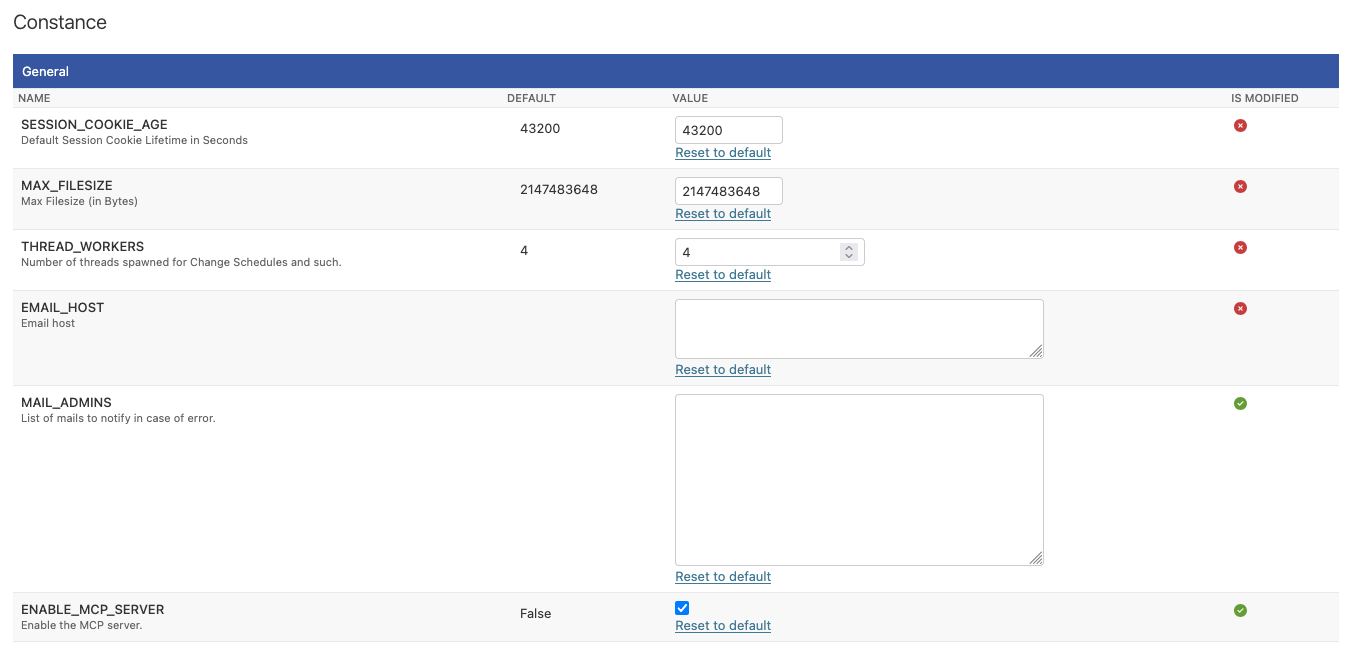

ENABLE_MCP_SERVER selected in the NCAE configuration

Enabling the setting creates or updates the MCP server’s OAuth application. If the setting is not available, or clients cannot authenticate after it is enabled, ask the NCAE deployment administrator to verify that the MCP server has been deployed and that its public URL is configured correctly.

Expose services and reports

Objects are hidden from MCP by default. Each object must be enabled separately; enabling the MCP server globally does not expose existing objects automatically. The following steps require permission to edit the service or report.

Expose a service

  1. Open Services and create or edit the service.
  2. In Basic Settings, select Enable for MCP.
  3. Save the service.

An MCP user who already has access to the service can then discover it and use it to create a service instance.

Enable for MCP option in a service’s Basic Settings

Expose a report

  1. Open Reports and create or edit the one-time report.
  2. Select Enable for MCP.
  3. Save the report.

An MCP user who already has access to the report can then discover and read its report data.

MCP support currently covers services and one-time reports. Other NCAE object types are not yet exposed through the MCP server. An object without an Enable for MCP option cannot currently be made available to MCP clients.

To remove an object from MCP, clear Enable for MCP and save it. This does not delete the object or change its normal NCAE permissions.

Connect Claude Code

Ask your NCAE administrator for the public MCP endpoint. It must end in /mcp, for example https://ncae-mcp.example.com/mcp.

Add the server to Claude Code for the current user:

claude mcp add --transport http ncae --scope user https://ncae-mcp.example.com/mcp

Replace the example URL with the endpoint for your NCAE installation. Then:

  1. Start Claude Code and run /mcp.
  2. Select the ncae server and choose Authenticate.
  3. Sign in to NCAE in the browser and approve access.
  4. Return to Claude Code and confirm that the server is connected.

The server URL may be shared, but each user must complete authentication with their own NCAE account. Do not add a token or password to the command. Claude Code completes the OAuth flow and stores the resulting user credentials.

To verify the saved configuration from a terminal, run:

claude mcp get ncae

See the Claude Code MCP documentation for other configuration scopes and MCP management commands.

Connect another MCP client

For a client that supports remote HTTP MCP servers and OAuth, add this configuration using the MCP endpoint for your NCAE installation:

{
  "mcpServers": {
    "ncae": {
      "type": "http",
      "url": "https://ncae-mcp.example.com/mcp"
    }
  }
}

The exact location and name of the configuration file depend on the client. After adding the server, start the client’s authentication flow and sign in with your own NCAE account. Clients that do not support OAuth for remote MCP servers cannot connect directly.

Troubleshooting

  • The client cannot reach the server: Check the URL, including the /mcp path. Remote clients normally require an HTTPS endpoint that is reachable from the user’s device.
  • Authentication is unavailable or fails: Confirm that ENABLE_MCP_SERVER is enabled and ask the deployment administrator to check the MCP server configuration.
  • A service or report is missing: Confirm that Enable for MCP is selected on that object and that the signed-in user can access it normally in NCAE.
  • The wrong NCAE permissions are used: Disconnect the MCP server in the client and authenticate again with the intended NCAE account.
