Goals

In this task, you will learn how to:

Place your domain logic in the correct place
Update your domain logic
Run the updated version from NCAE

We will do this example based on a IOSXE Banner Service, which is managing the Message of the day (motd) and the login Banner.

Structure

As a recap - NCAE simply calls URLs, so you could integrate other systems!

As module developers, we provide logic encapsuled in an API. The application serving the API is served as Docker-Image, and installed on the NCAE VM as Kubernetes Service during the initial container image deployment (see Deploy the container image on your NCAE).

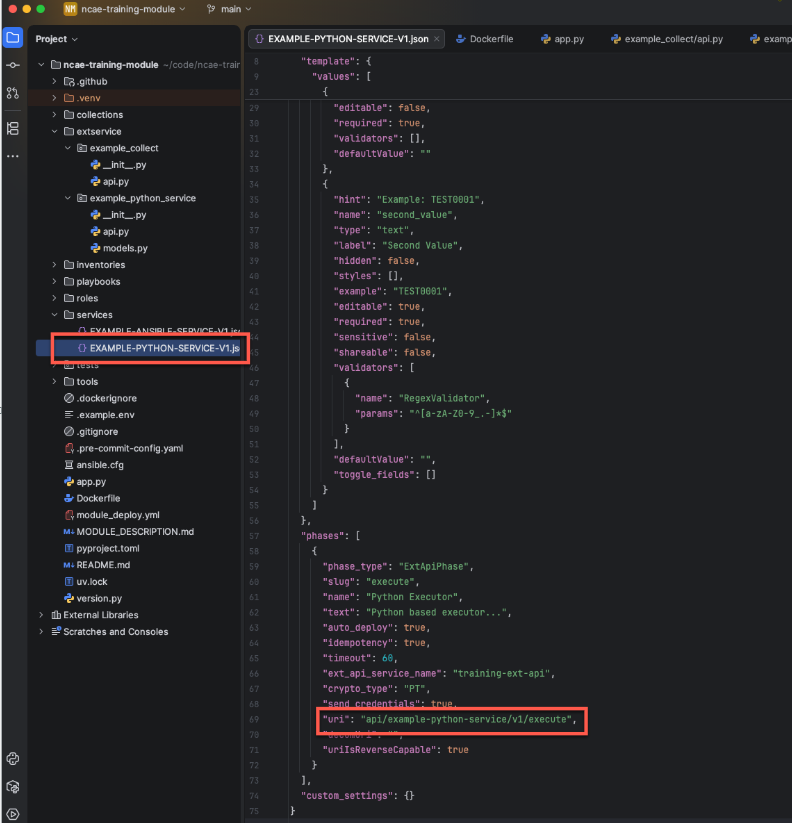

The logic is then called from a Phase, by its uri. This is defined in the services/EXAMPLE-PYTHON-SERVICE-V1.json

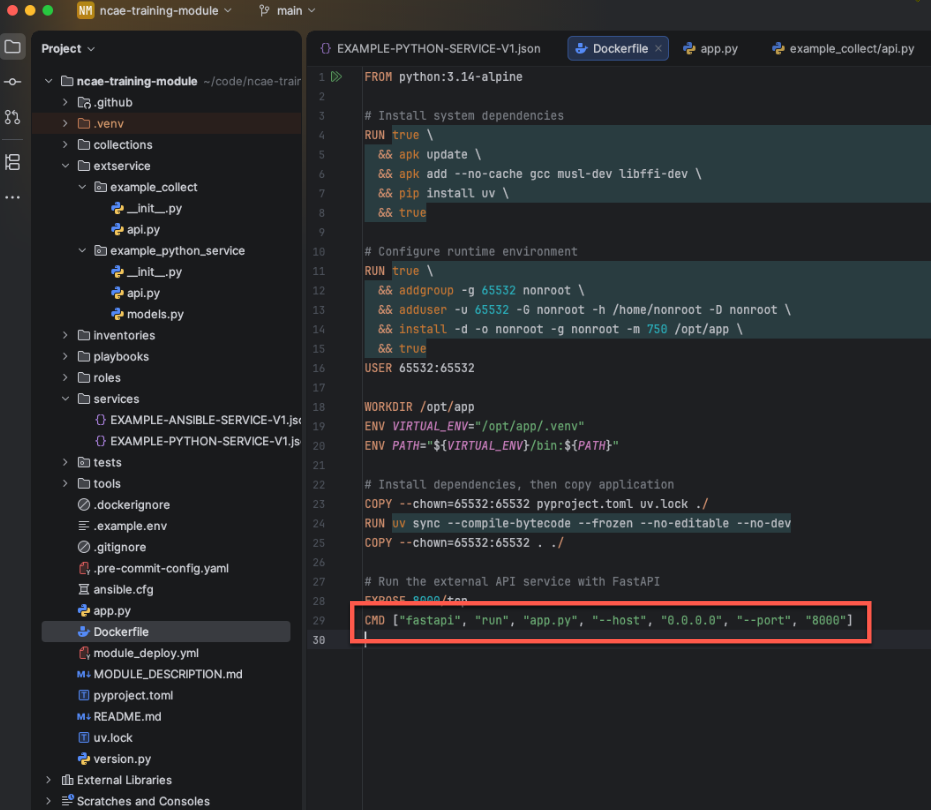

The (Kubernetes) Service runs the Dockerfile provided by the module. In this file, the python application app.py is served.

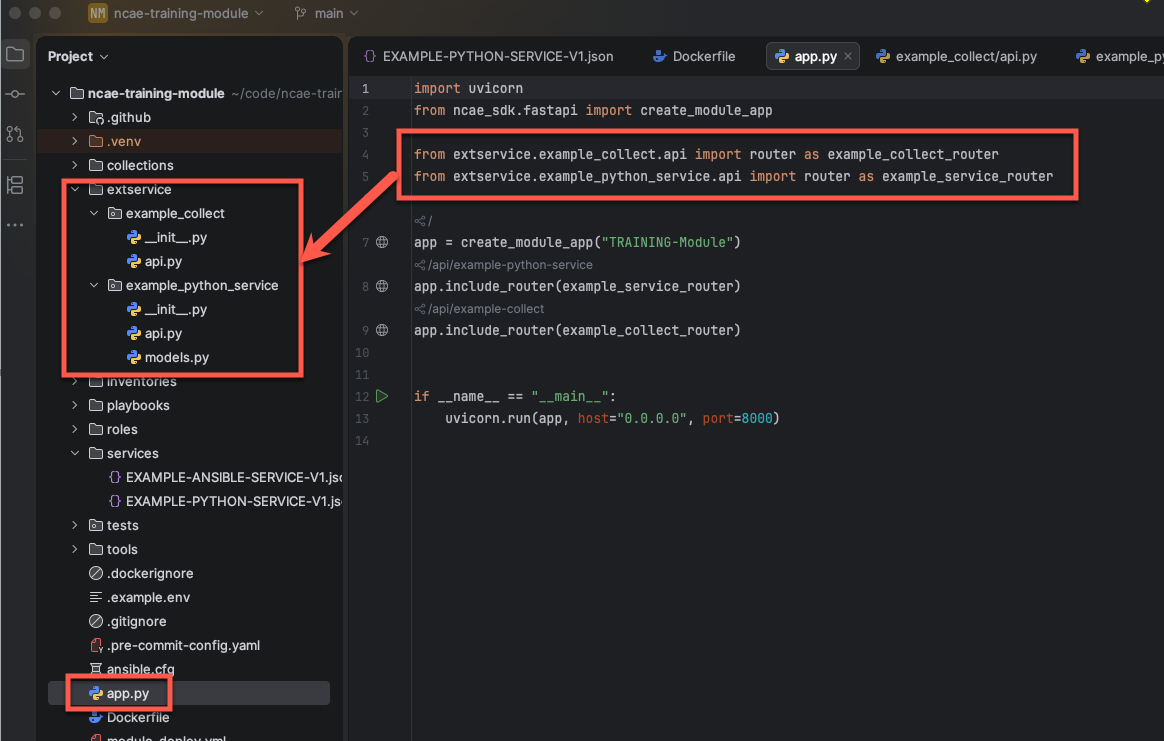

And if we further inspect the app.py, it shows that the python code in the extservice folder is exposed.

Provide your own logic

The quick approach

Add a new file named IOSXE-BANNER-SERVICE-V1.json in the services folder and paste these contents:

{
  "name": "IOSXE-BANNER-SERVICE-V1",
  "description": "This Service is managing the Login Banner",
  "category": "default",
  "excel": true,
  "fire_and_forget": false,
  "module_name": "Training",
  "template": {
    "values": [
      {
        "hint": "",
        "name": "name",
        "type": "text",
        "label": "Service Instance Name",
        "styles": [],
        "editable": false,
        "required": true,
        "validators": [],
        "defaultValue": ""
      },
      {
        "key": "main",
        "hint": "",
        "name": "__targets__/main",
        "type": "service_instance_target",
        "label": "Service Instance Target",
        "hidden": false,
        "styles": [],
        "editable": true,
        "required": true,
        "shareable": true,
        "toggle_fields": []
      },
      {
        "hint": "",
        "name": "motd",
        "type": "text-area",
        "label": "Message of the Day",
        "hidden": false,
        "styles": [],
        "editable": true,
        "required": false,
        "sensitive": false,
        "shareable": false,
        "toggle_fields": []
      },
      {
        "hint": "",
        "name": "banner_login",
        "type": "text-area",
        "label": "Login Banner",
        "hidden": false,
        "styles": [],
        "editable": true,
        "required": true,
        "sensitive": false,
        "shareable": false,
        "toggle_fields": []
      }
    ]
  },
  "phases": [
    {
      "phase_type": "ExtApiPhase",
      "slug": "IOSXE-BANNER-V1-1",
      "name": "IOSXE-BANNER-V1 Phase 1",
      "text": "This Phase is configuring IOS XE Banners",
      "auto_deploy": true,
      "idempotency": true,
      "timeout": null,
      "ext_api_service_name": "training-ext-api",
      "crypto_type": "PT",
      "send_credentials": true,
      "uri": "api/banner-service/v1/execute",
      "decomUri": "",
      "uriIsReverseCapable": true
    }
  ],
  "custom_settings": {}
}

The correct approach

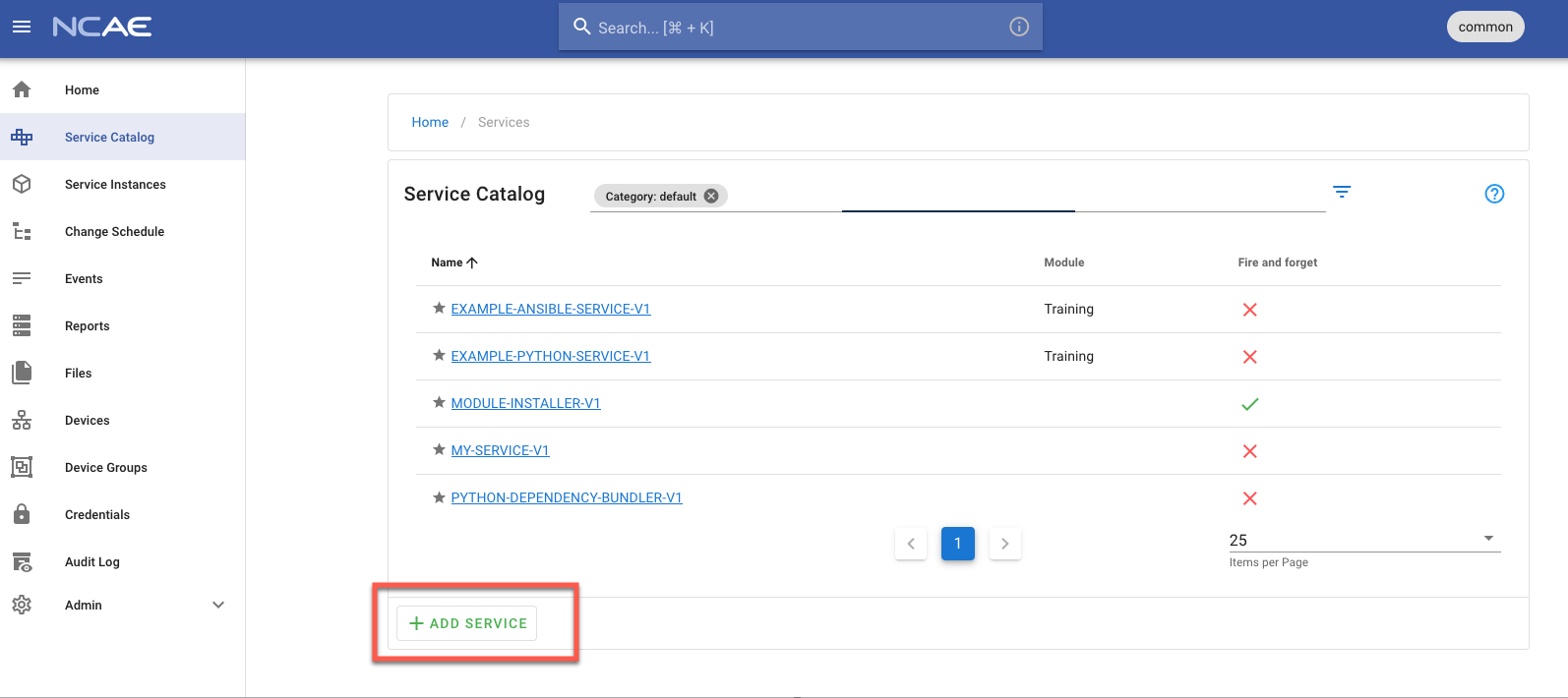

NCAE allows creating, editing and exporting of the Service structure on the frontend. Start by creating a new Service on the Service list view:

The Service creation/edit wizard starts.

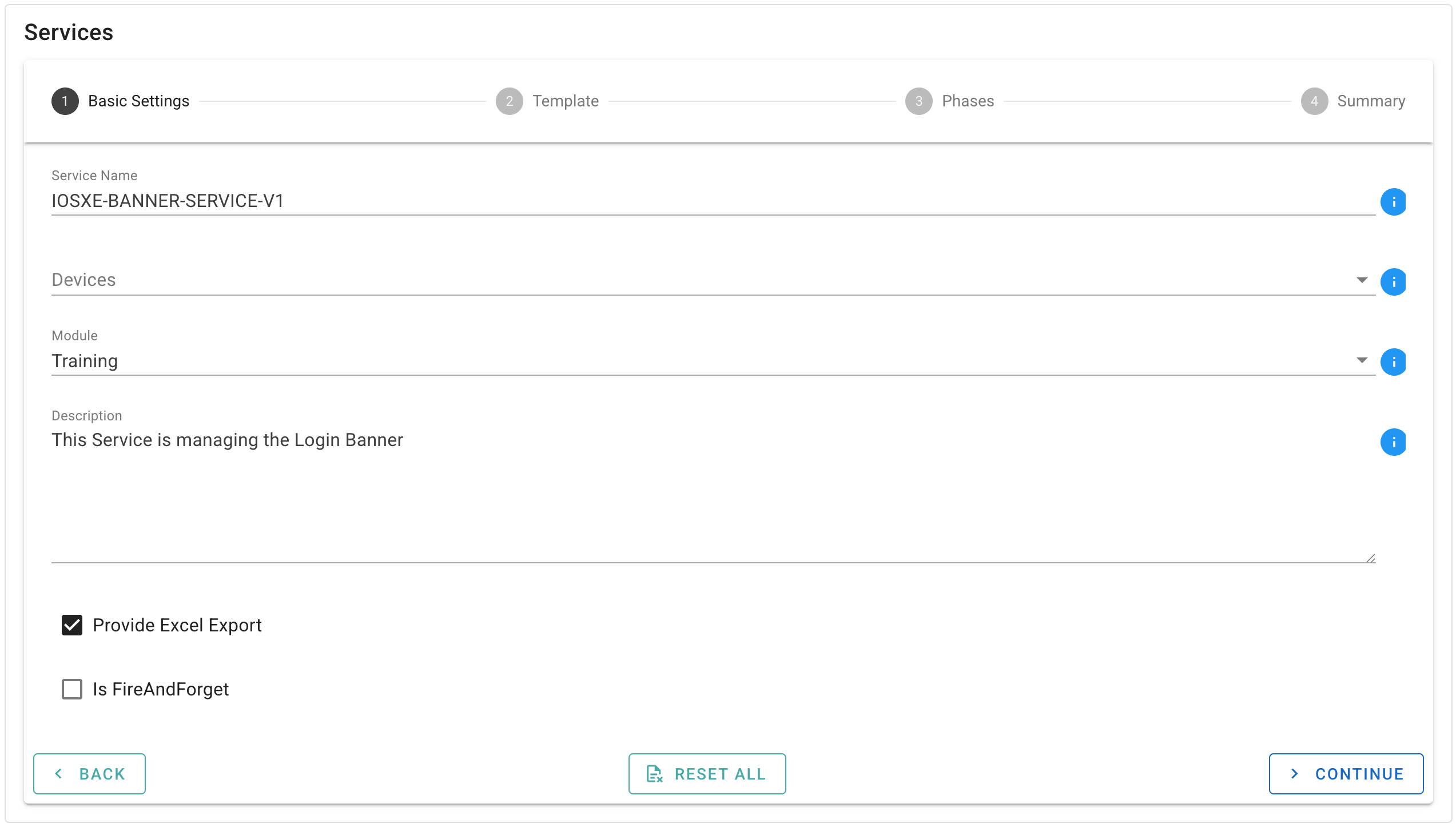

Base

This lets you configure the “base” data of the service. “FireAndForget” Services are supposed to run exactly once, so this should always be un-checked for this training.

Fill in these fields, and hit “Continue”

Service Name: Should be IOSXE-BANNER-SERVICE-V1
Devices: Should be empty
Module: Should be training
Description: Should be This Service is managing the Login Banner
Provide Excel Export: Should be checked
Is FireAndForget: Should be unchecked

Template

This is the first important bit: this defines the structure of the data that is submitted. As an example, simply drag a TextInput into the right area. Hit “Continue” once you are ready.

Service Instance Name: Leave unchanged. You can expand/collapse it.

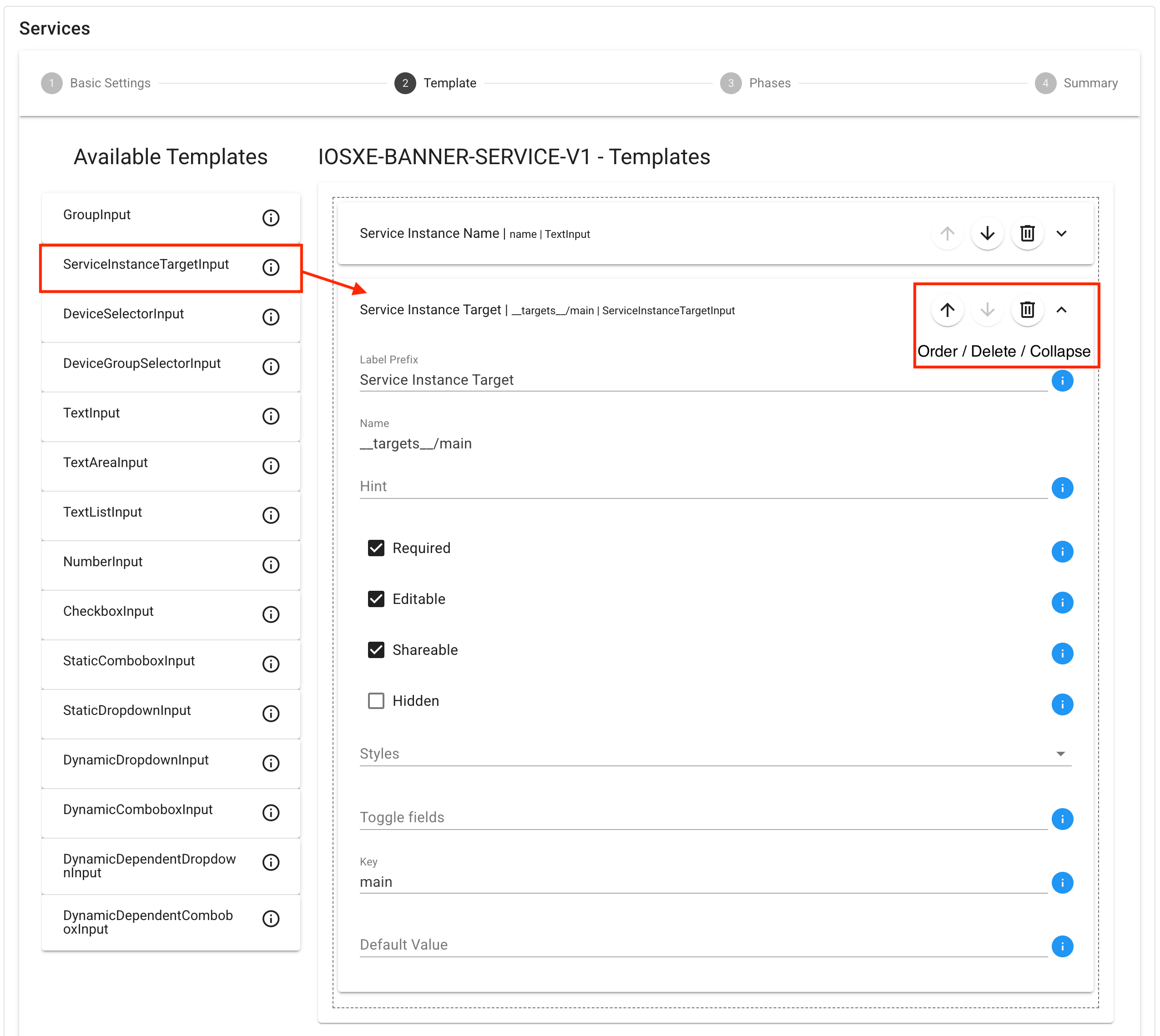

ServiceInstanceTargetInput: After dragging it, more context expands. Collapse it again.
TextAreaInput: After dragging it, more context expands.
Label: Should be Message of the Day
Name: Should be motd
Editable: Should be checked
Required: Should be checked
TextAreaInput: After dragging it, more context expands.
Label: Should be Login Banner
Name: Should be banner_login
Editable: Should be checked
Required: Should be checked

Phases

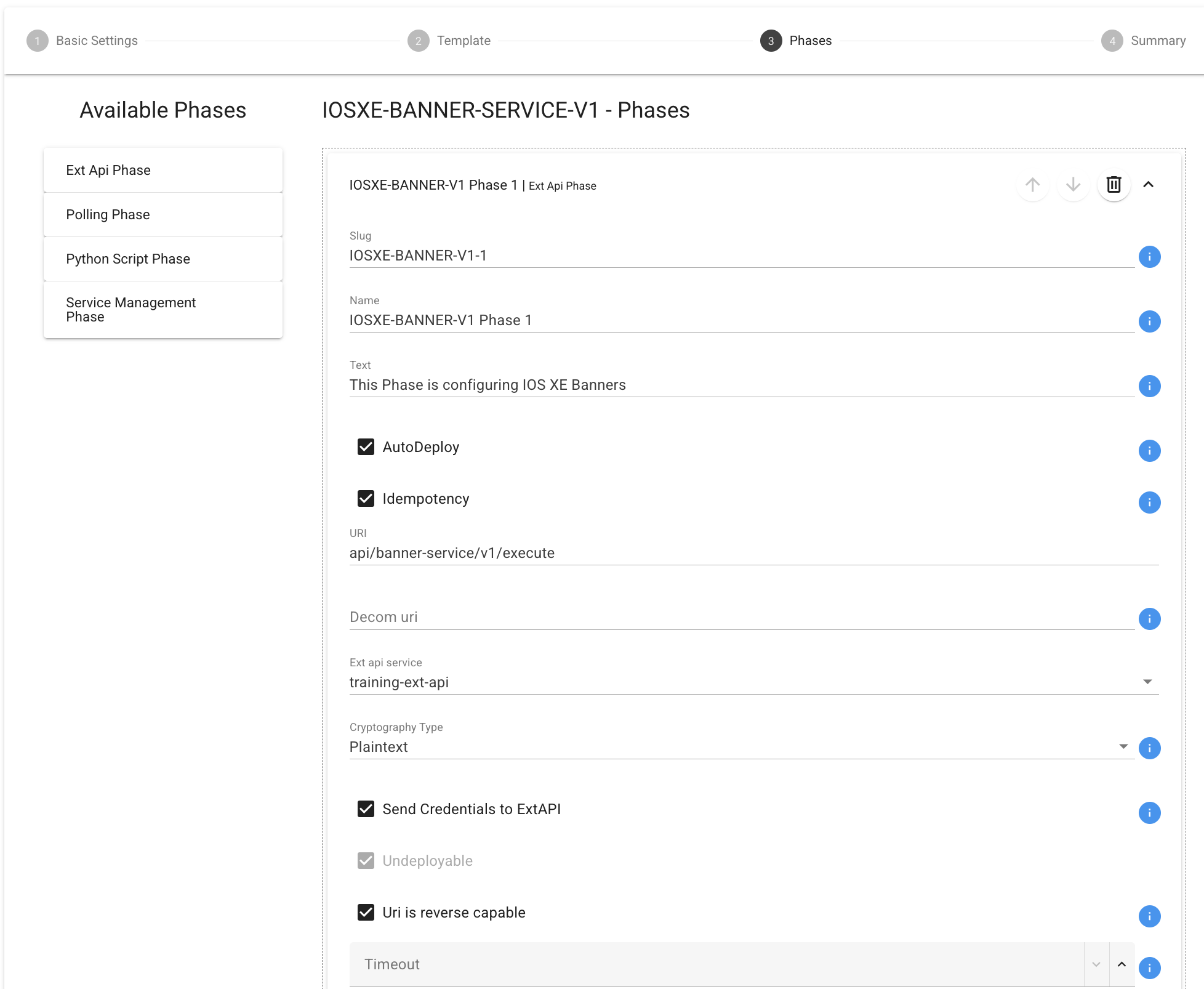

NCAE supports multiple phase types - for now, let’s only use “Ext Api Phases”. We will add documentation for the other Phase types soon.

Slug: Should be iosxe-banner-v1-1
Name: Should be IOSXE-BANNER-V1 Phase 1
Text: Should be This Phase is configuring IOS XE Banners
AutoDeploy: Should be checked
Idempotency: Should be checked
Send Credential to ExtApi: Should be checked
URI: Should be api/banner-service/v1/execute
Exp api service: Should be training-ext-api
Uri is reverse capable: Should be checked, means for a decom call the same uri will be used!

After this, “Continue” again. On the summary page, click “Create Service”.

Your service is ready

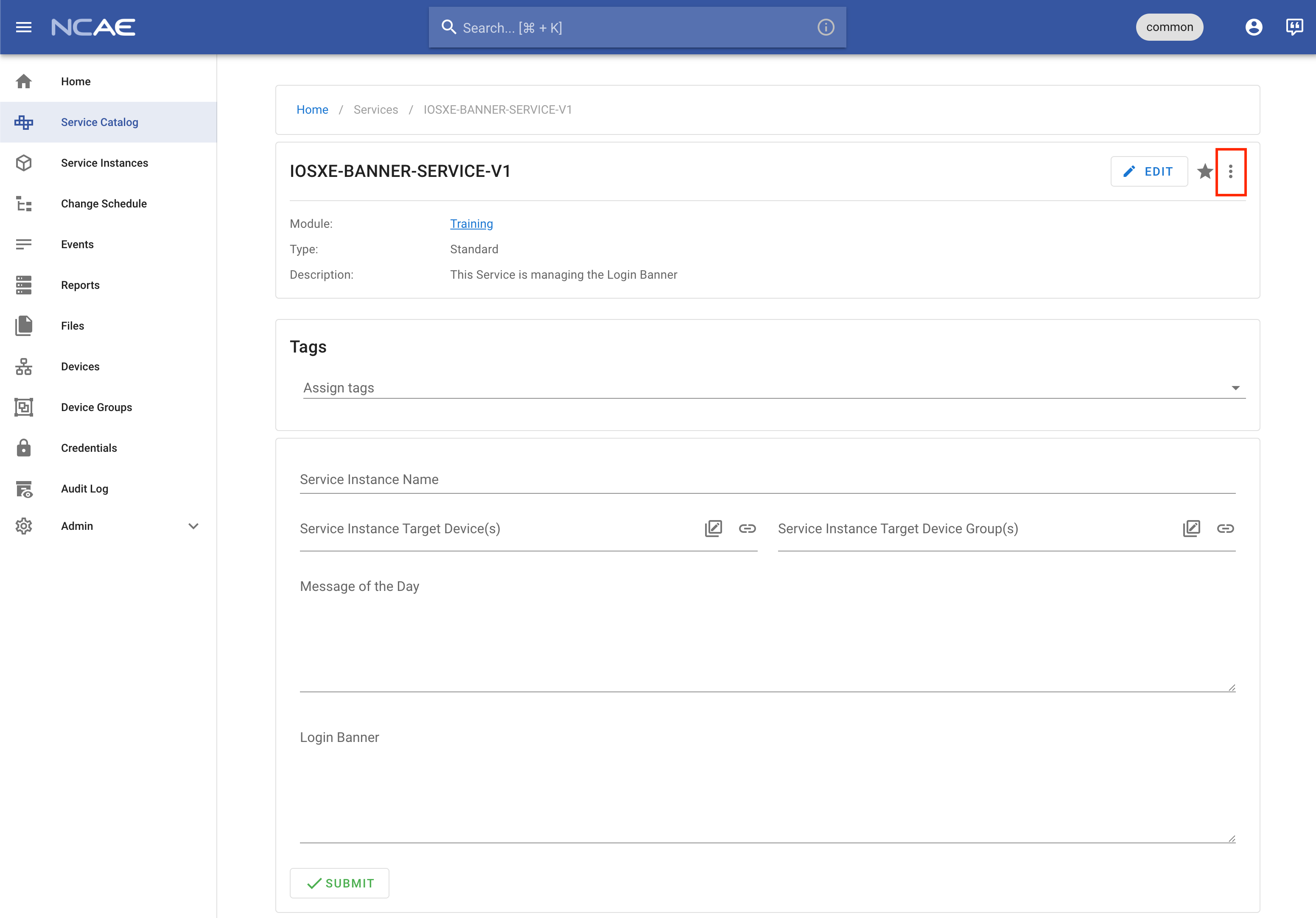

You can now see your first service!

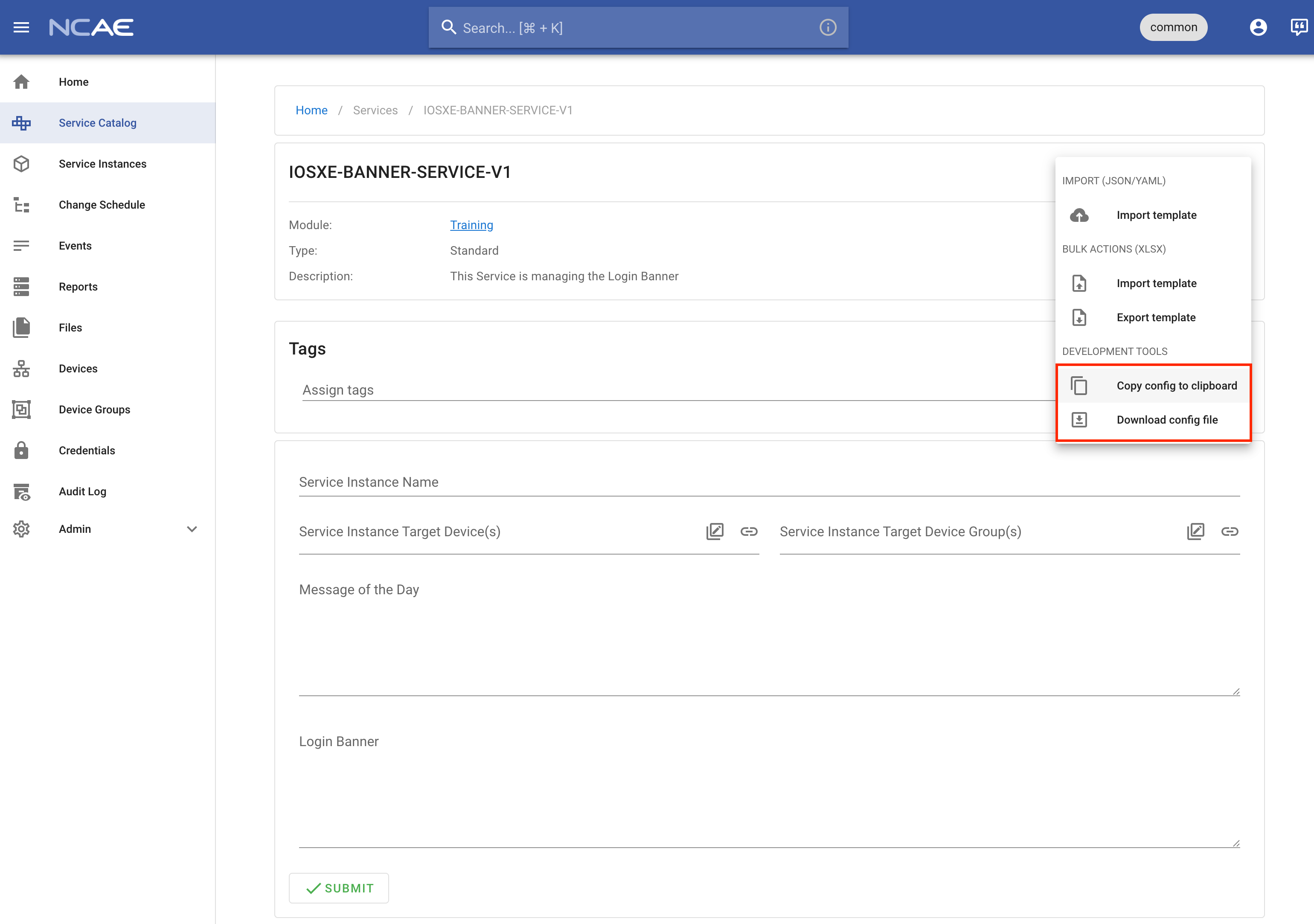

To migrate this data into the module, select “Copy config to clipboard” from the menu with three dots on the top right.

Export

Now, create a new file in the services folder: IOSXE-BANNER-SERVICE-V1.json and paste the contents from your clipboard. This should exactly match the structure provided above.

But there now is a new API endpoint

The Uri defined as api/banner-service/v1/execute does not yet exist! So let’s add it. Following Steps needs to be done:

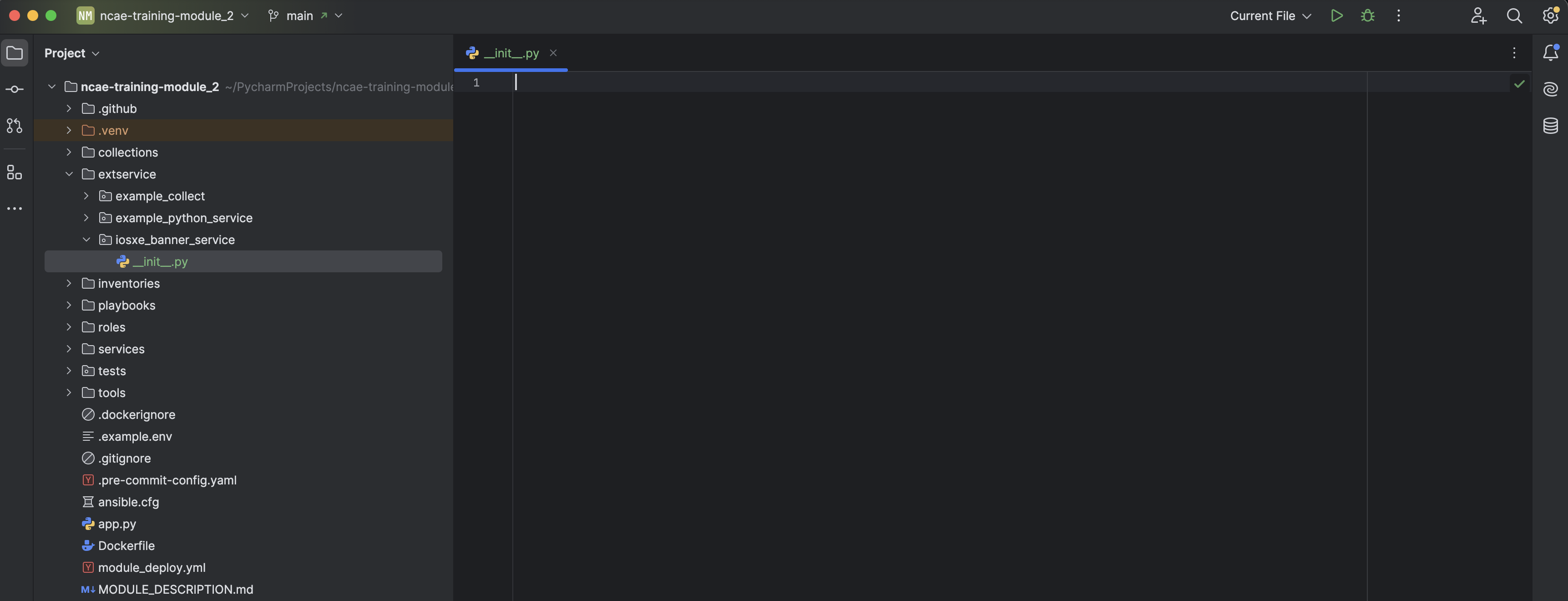

Create a new Python Directory iosxe_banner_service under the extservice folder
A Python Directory is a normal Directory with an empty file in it called __init__.py Always confirm to Add the files in Git! Otherwise it will not be included and pushed to Github.
Add a new python file to the iosxe_banner_service (api.py)
Add following Domain Logic to the api.py:

from fastapi import APIRouter
from ncae_sdk.fastapi.extapi import ExtApiPhaseContext, extapi_phase_route
from ncae_sdk.types import PhaseStatus
from netmiko import ConnectHandler
from netmiko.exceptions import NetmikoAuthenticationException, NetmikoTimeoutException
from pydantic import BaseModel

router = APIRouter(
    prefix="/api/banner-service",
    tags=["IOSXE Banner Python Service"],
)


class BannerCmdb(BaseModel):
    name: str
    motd: str
    banner_login: str


# Delimiter used in IOS banner command — must NOT appear in banner text
DELIMITER = "^"


@extapi_phase_route(router, "/v1/execute")
def execute_v1(ctx: ExtApiPhaseContext[BannerCmdb]) -> None:
    ctx.log_info("Python Executor is running. Starting configuring the Banners!")

    if ctx.is_decommission:
        motd = ""
        login = ""
    else:
        motd = ctx.cmdb_data.motd
        login = ctx.cmdb_data.banner_login

    result_dict = {"success_count": 0, "failure_count": 0, "total_count": 0}

    for device in ctx.devices:
        is_completed = configure_banners(
            host=device.host,
            username=device.credential.username,
            password=device.credential.password,
            secret=device.credential.become_password,
            motd=motd,
            banner_login=login,
            ctx=ctx,
        )
        result_dict[device.name] = is_completed
        result_dict["total_count"] += 1
        if is_completed:
            result_dict["success_count"] += 1
        else:
            result_dict["failure_count"] += 1

    ctx.log_info(f"Configuration Completed on {result_dict['success_count']} of {result_dict['total_count']} devices!")

    if ctx.is_decommission:
        ctx.update_phase_status(status=PhaseStatus.RETIRED)
    elif result_dict["failure_count"] == result_dict["total_count"]:
        ctx.log_error("All Devices failed!")
        ctx.update_phase_status(status=PhaseStatus.ERRORED)
    else:
        ctx.update_phase_status(status=PhaseStatus.DEPLOYED)


def configure_banners(
    host: str,
    username: str,
    password: str,
    secret: str,
    motd: str,
    banner_login: str,
    ctx: ExtApiPhaseContext[BannerCmdb],
) -> bool:
    device = {
        "device_type": "cisco_ios",
        "host": host,
        "username": username,
        "password": password,
        "secret": secret,
    }

    try:
        with ConnectHandler(**device) as net_connect:
            # Enter enable mode if an enable secret is set
            if device.get("secret"):
                net_connect.enable()

            commands = [
                f"banner motd {DELIMITER}{motd}{DELIMITER}",
                f"banner login {DELIMITER}{banner_login}{DELIMITER}",
            ]

            # Send Config Commands to the Device
            net_connect.send_config_set(commands)

            # Save configuration
            net_connect.save_config()

            ctx.log_info(f"Banner configured and Config saved on Device: {host}")
            return True

    except NetmikoAuthenticationException:
        ctx.log_error(f"Device: {host} Authentication failed. Check your credentials.")
        return False
    except NetmikoTimeoutException:
        ctx.log_error(f"Connection timed out. Verify {host} is reachable.")
        return False
    except Exception as e:
        ctx.log_error(f"Unexpected error: {e}")
        return False

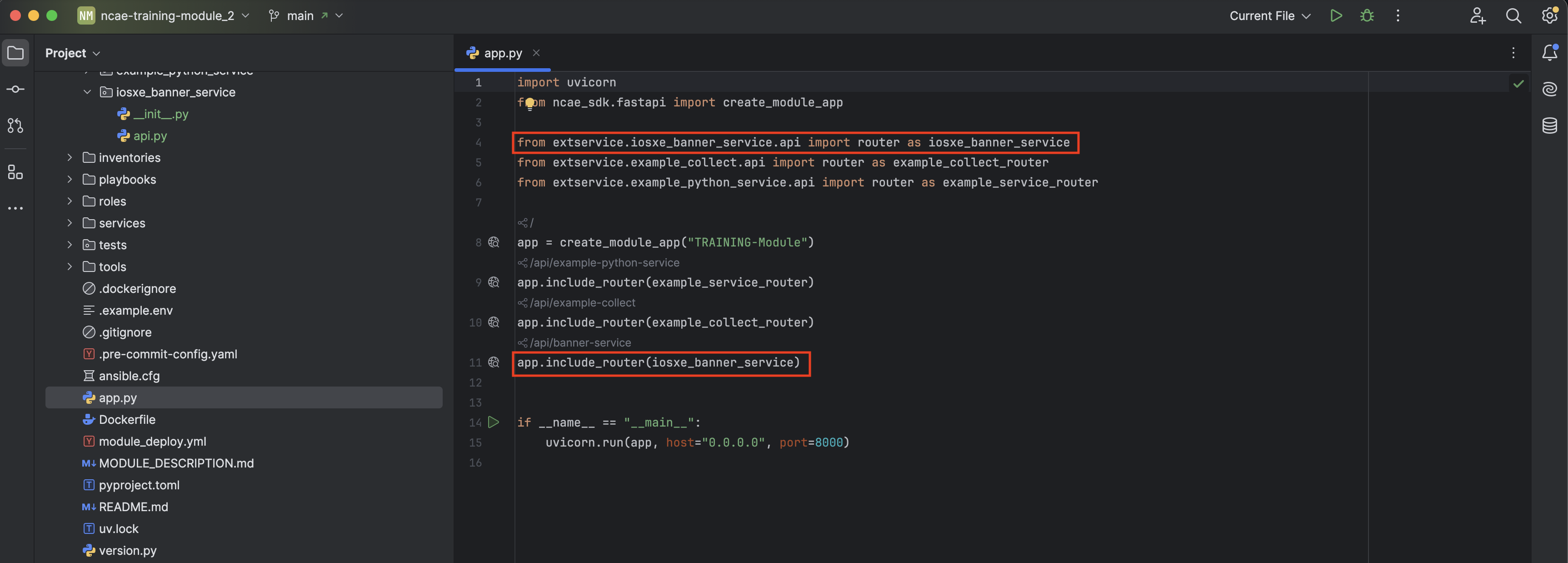

Include this new Domain Logic into the API. Open the app.py file in the Base Project Directory and add following to lines:

import uvicorn
from ncae_sdk.fastapi import create_module_app

from extservice.example_collect.api import router as example_collect_router
from extservice.example_python_service.api import router as example_service_router
from extservice.iosxe_banner_service.api import router as iosxe_banner_service

app = create_module_app("TRAINING-Module")
app.include_router(example_service_router)
app.include_router(example_collect_router)
app.include_router(iosxe_banner_service)


if __name__ == "__main__":
    uvicorn.run(app, host="0.0.0.0", port=8000)

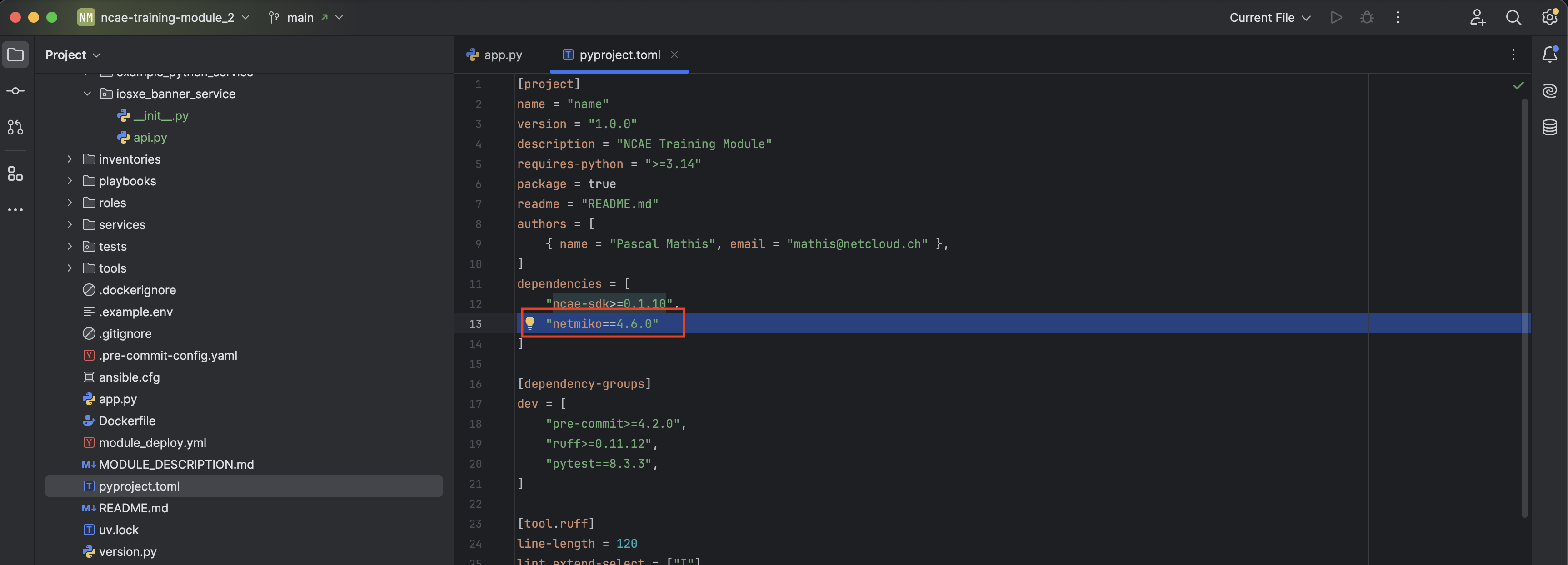

For connecting to the IOSXE Devices we are using a very popular library called netmiko (see the api.py file above). This new library needs to be installed! There are different ways to do this. In this case we manually add the library as dependency in the pyproject.toml and update it via uv sync command.
Add on a new line in “dependencies”, and paste "netmiko==4.6.0". Right-click the file pyproject.toml and run uv sync.
This is not shown: uv also provides a shortcut for people working in the terminal: uv add netmiko. This adds the dependency to pyproject.toml, runs uv sync and updates uv.lock in one step.
As this is a bit of work uv provides a shortcut: uv add netmiko. This adds the dependency to pyproject.toml and uv.lock in one step.

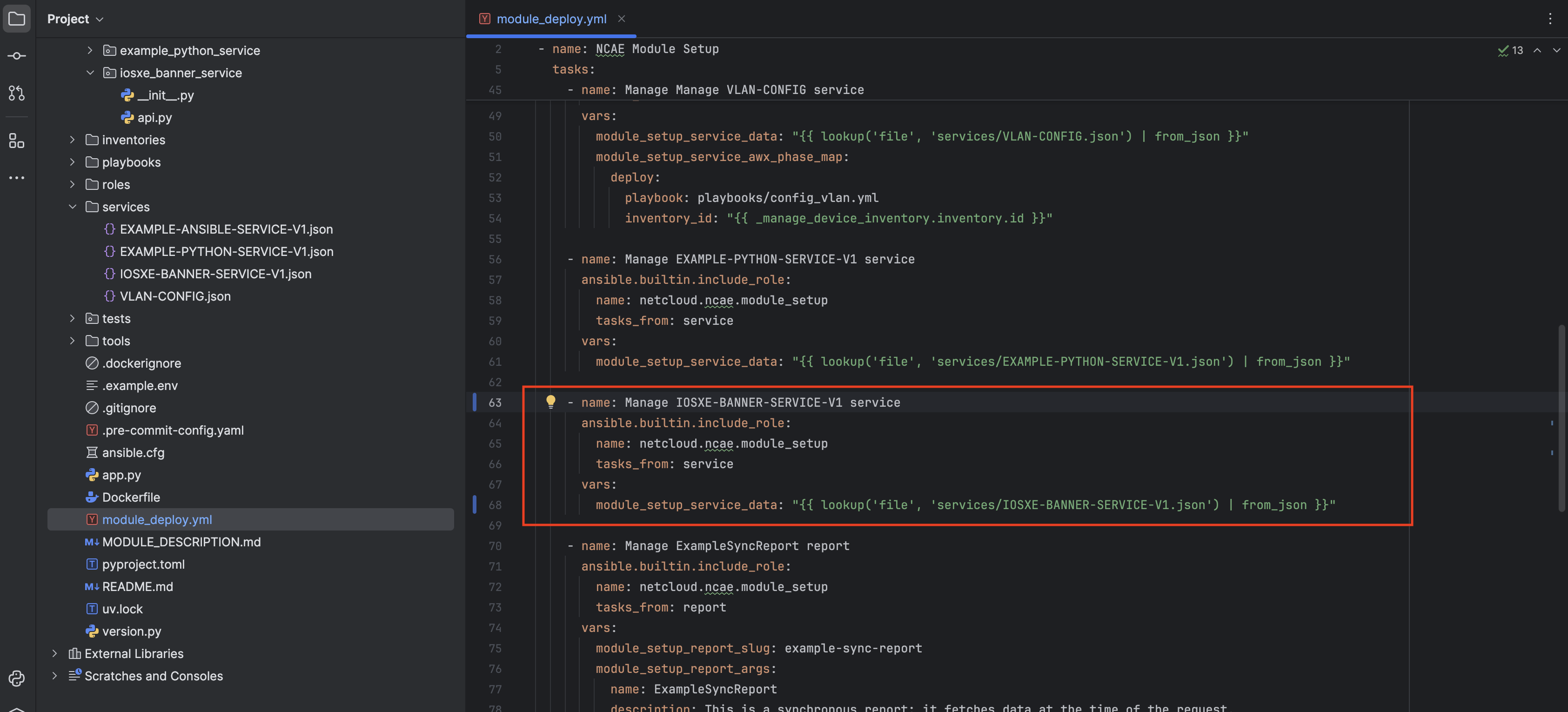

Add the new Service to the module_deploy.yml in order to get it installed during module installation process.

Add the new Service to the Module Installation

add-service-to-module-deploy


    - name: Manage IOSXE-BANNER-SERVICE-V1 service
      ansible.builtin.include_role:
        name: netcloud.ncae.module_setup
        tasks_from: service
      vars:
        module_setup_service_data: "{{ lookup('file', 'services/IOSXE-BANNER-SERVICE-V1.json') | from_json }}"

Summary

A new service was created on the frontend, the structure was exported (both Service and Phase data)
This structure was added to the Module, as a new Service
The Python application was extended to support the new Phase API calls

Update the module

Repeat the steps from Module Update):

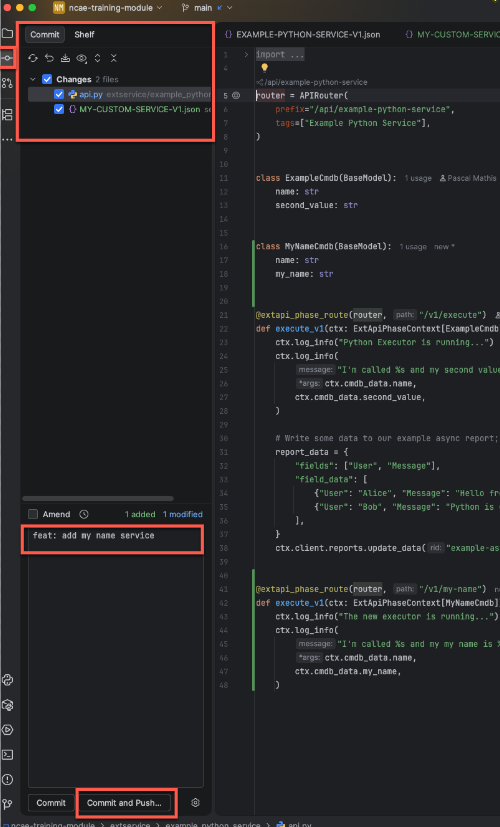

Commit the changes (Git > Commit in the menu)
Make sure that all new/changed files are checked, and add a commit message
Push it to GitHub, and wait until the pipeline is ready

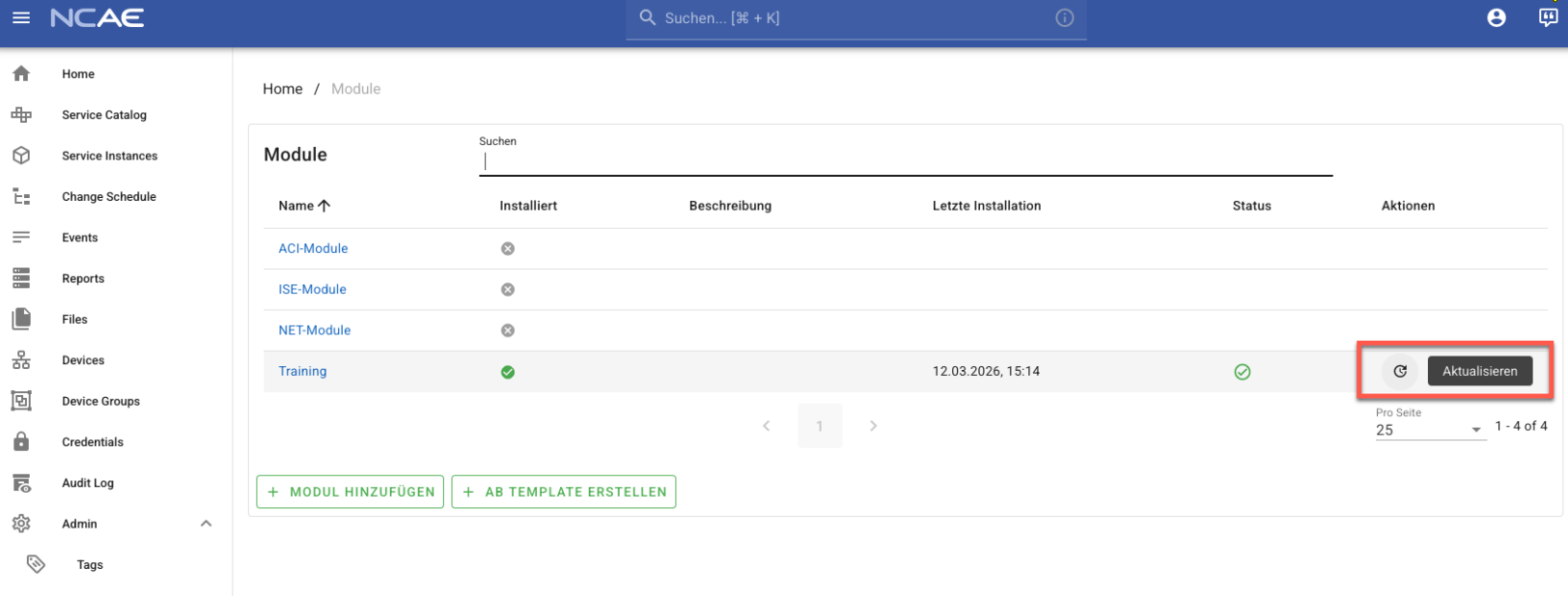

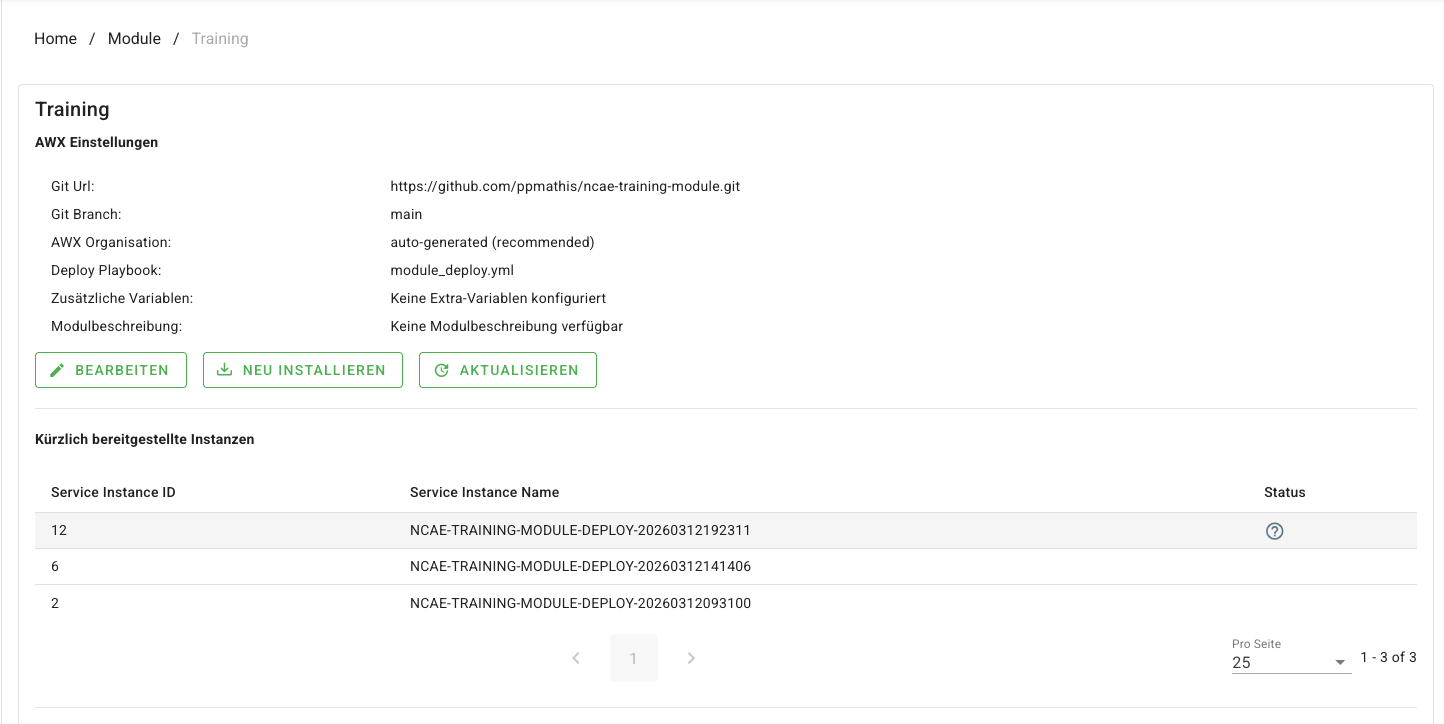

Switch to the Browser, and “update” the Module in NCAE
Wait until the “update” service is successfully deployed

Update the Container on the NCAE VM

The Container Running on Your NCAE VM is still the old one!

Make sure the Github Pipeline went through without an Error. You get also an email if there was an error.
Login to Your VM via SSH like in Task 3 and open the Local Shell.
Make sure You have root permissions sudo -i

Run the Command kubectl -n ncae-module rollout restart deployment/ncae-extapi-training-server && kubectl -n ncae-module rollout status deployment/ncae-extapi-training-server inorder to pull the new Image and restart the container:

[root@ncae-training-X ~]# kubectl -n ncae-module rollout restart deployment/ncae-extapi-training-server
deployment.apps/ncae-extapi-training-server restarted

[root@ncae-training-X ~]# kubectl -n ncae-module rollout status deployment/ncae-extapi-training-server
Waiting for deployment "ncae-extapi-training-server" rollout to finish: 1 old replicas are pending termination...
Waiting for deployment "ncae-extapi-training-server" rollout to finish: 1 old replicas are pending termination...
deployment "ncae-extapi-training-server" successfully rolled out

Check out the new service!

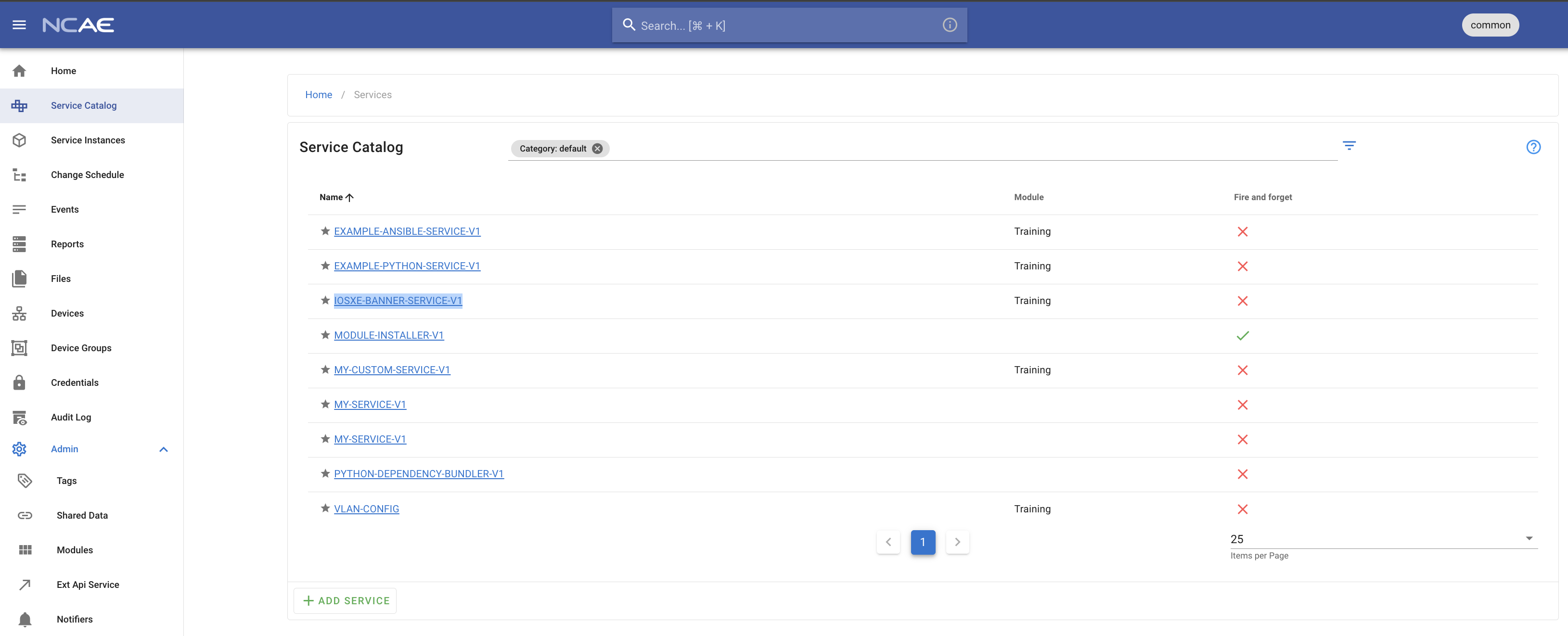

On the service list, the new Service is on display.

Fill it in and assert the deploy logs!

Update the Service

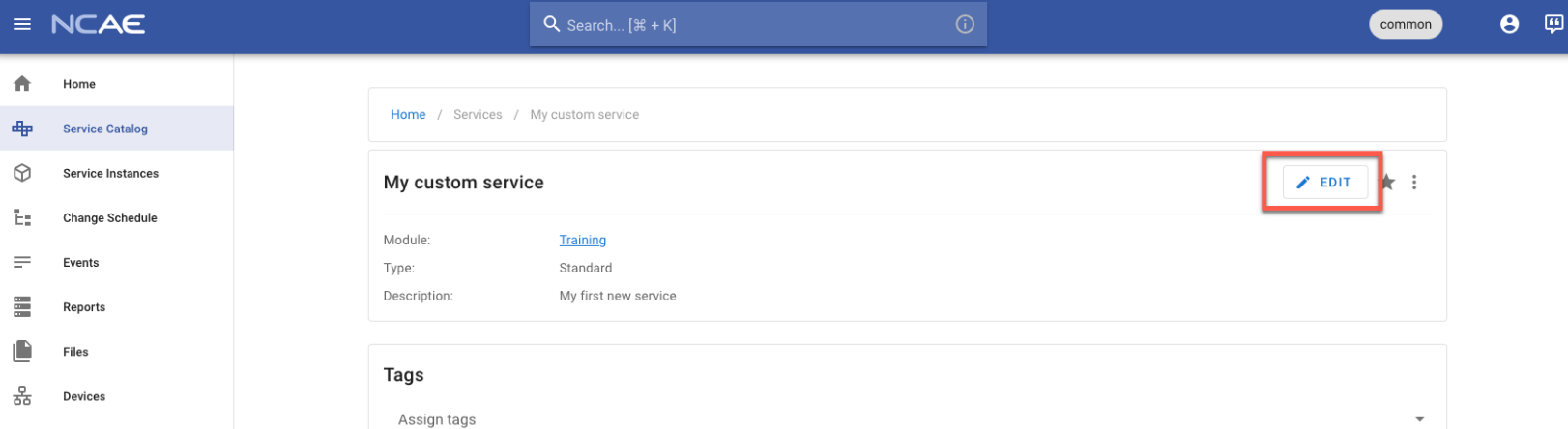

When selecting an existing Service, its data can be edited by clicking on the edit button on the service detail page.

From there, it works in the exact same way as described above.

One thing to keep in mind is that changes on existing fields must be “backwards compatible”. Reasoning: your Service Instance data may be built with an older version of the Service.

As an example, do not remove values from select fields and always add defaults when adding required fields. Else, editing existing Service Instances may be prevented by the Core.

Summary

The services folder contains the structure (Services, Phases)
The Dockerfile contains the module logic. It is served as python application in app.py
The logic is referenced by the Phases as API endpoints.
