6 - Module - Reports

Goals

In this task, you will learn how to:

  • Create a synchronous report
  • Use the reports contents as values for a dynamic dropdown field in a Service
  • Pass filter queries from NCAE core to the actual report

Intro

The basics are the same as when creating a new service, but without the JSON bits:

  • Extend the module_deploy.yml file to let the Module installation pick up the new report.
  • Add the report logic to the Python application.
  • Expose an API endpoint for this logic, so that the NCAE core may access it.
  • Configure a Service in NCAE to access the new report.

A word about sync vs. async

There are two example reports in module_deploy.yml, look them up by name:

  • “Manage ExampleSyncReport report”
  • “Manage ExampleAsyncReport report”

For this example, the Sync report is used for didactic reasons - it requires a bit less setup. But this additional setup may well be worth your time when developing a real module. It boils down to adding a Schedule in NCAE that periodically calls the API endpoint for the async report. The NCAE SDK provides a helper to create ChangeScheduler objects.

Create a report

Extend the module

Add this snippet to module_deploy.yml:

    - name: Next trains
      ansible.builtin.include_role:
        name: netcloud.ncae.module_setup
        tasks_from: report
      vars:
        module_setup_report_slug: sbb-winterthur-departures
        module_setup_report_args:
          name: Departures from Winterthur
          description: Show the next trains from Winterthur.
          ext_api_service_id: "{{ _manage_python_ext_api.service.id }}"
          path: api/example-collect/v1/trains
          use_collector: false
          send_credentials: true
          cache_time: 60

Create the logic

In extservice/example_collect/api.py, paste this code at the top of the file:

import json
import urllib.request

And below the collect_v1 method:

@extapi_report_route(router, "/v1/trains")
def trains_v1(ctx: ExtApiReportContext) -> ExtApiReportResponse:
    url = "https://transport.opendata.ch/v1/stationboard?station=Winterthur&limit=20"

    with urllib.request.urlopen(url) as response:
        data = json.loads(response.read())
    field_data = [
        {
            "to": entry.get("to"),
            "name": f"{entry.get('to')} - {entry.get('stop', {}).get('departure')}",
            "departure": entry.get("stop", {}).get("departure"),
            "platform": entry.get("stop", {}).get("platform"),
        }
        for entry in data.get("stationboard", [])
    ]
    return ExtApiReportResponse(
        field_names=["to", "name", "departure", "platform"],
        field_data=field_data,
    )

This fetches data from SBB. Inspect this data in the browser! Only the fields to, name, departure and platform are passed back to the NCAE Core.

Commit, Push, Wait, Update

As in all previous tasks, update the Module and the container in your NCAE.

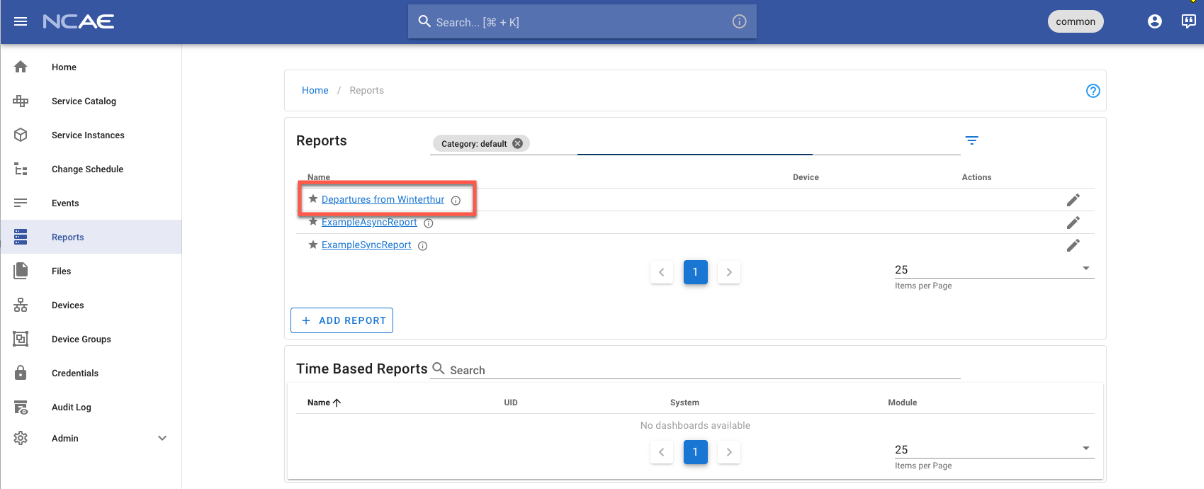

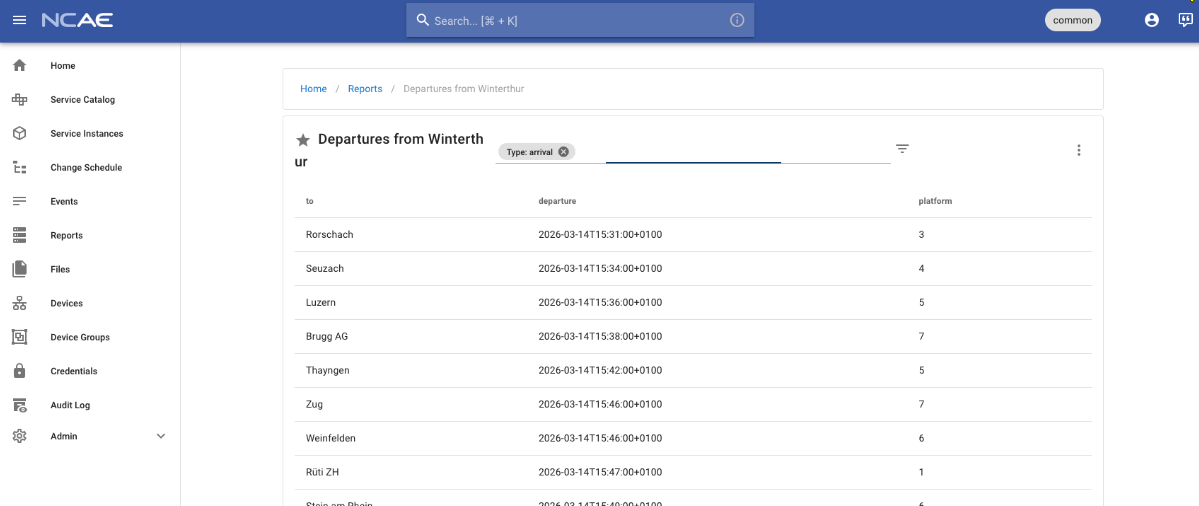

Once your NCAE instance is updated, check out the new report on the report list:


If you refresh the detail page, you will see the caching as defined in the module_deploy.yml: cache_time: 60 (in seconds).


Simply adding a report may be useful, but let’s re-use the report in NCAE to make user inputs a bit easier.

Connect the report to a field in a Service

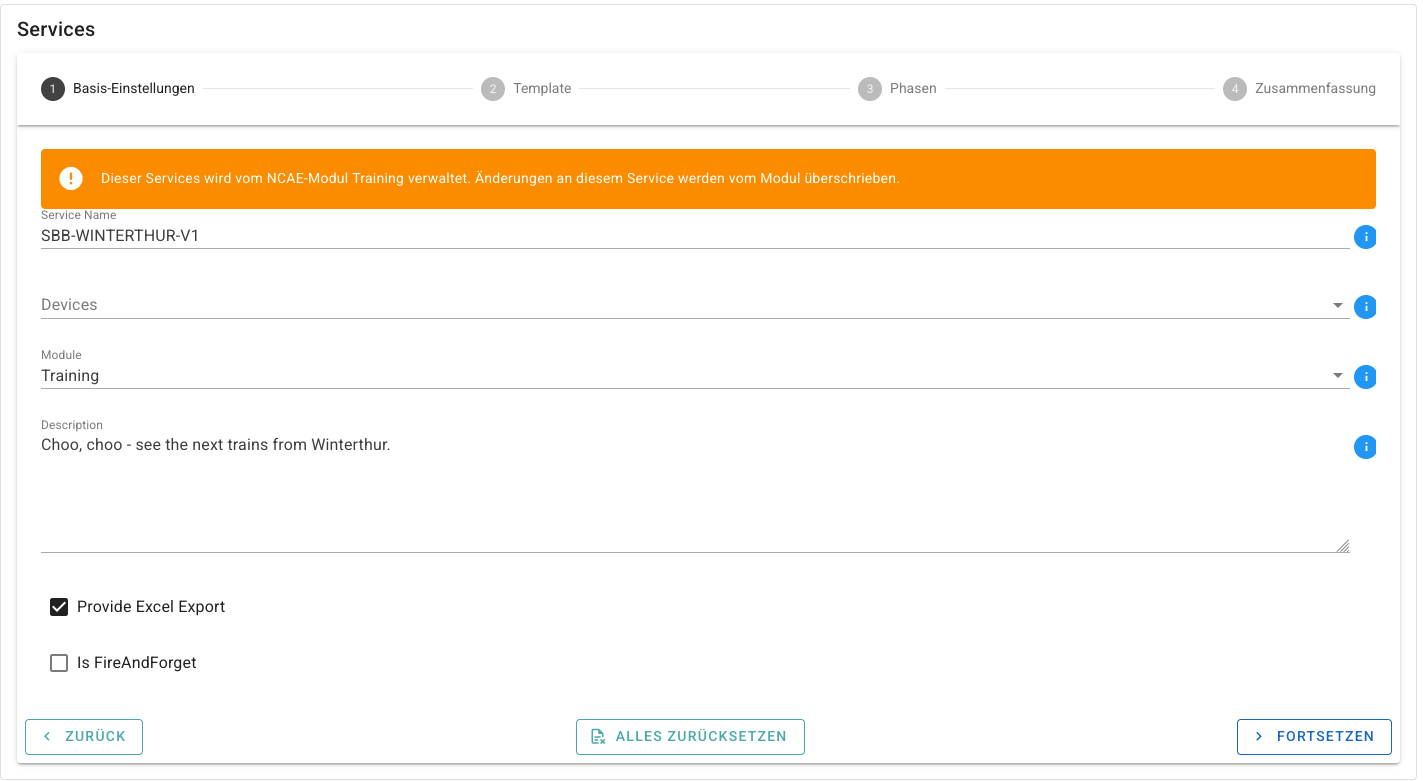

In NCAE Core, create a new Service. On the first step of the wizard, fill in any value you like. For this example, these values are used:

  • Service Name: Should be SBB-WINTERTHUR-V1
  • Devices: Should be empty
  • Module: Should be Training
  • Description: Should be Choo, choo - see the next departures from Winterthur.
  • Provide Excel Export: Should be checked
  • Is FireAndForget: Should be unchecked

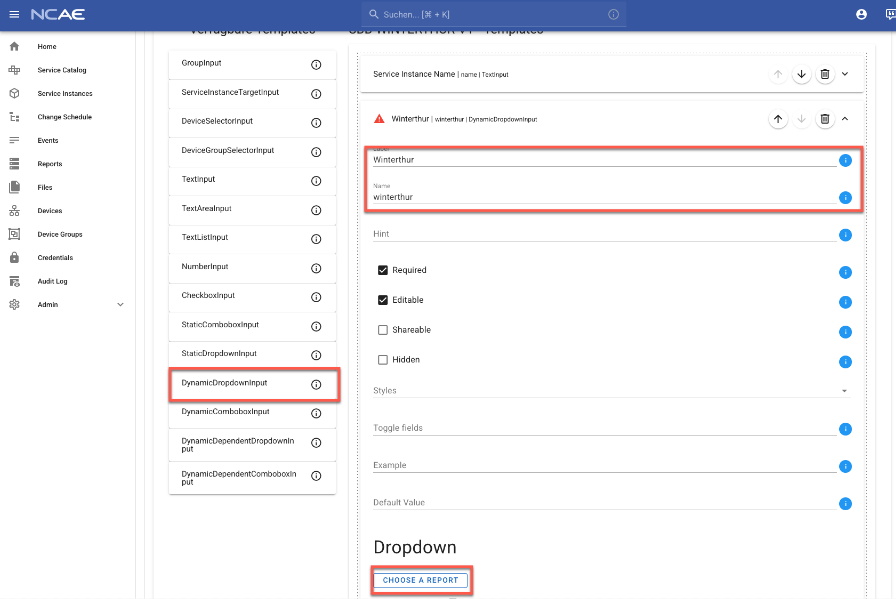

The second step is where it gets interesting. Start by dragging a DynamicDropdownInput to the right, then fill in the base information:

  • Label: Should be Winterthur
  • Name: Should be winterthur
  • Editable: Should be checked

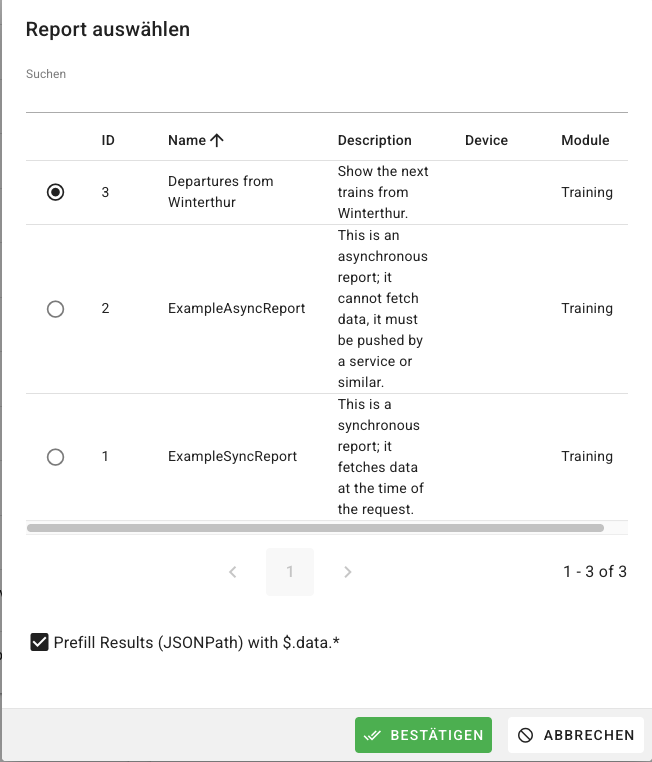

Then, click on Choose a report, and select the new report Departures from Winterthur. The data is now pre-fetched and helps you to navigate through the next steps:


  • Endpoint URI: Should be /api/dashboard/v1/onetimereport/sbb-winterthur-departures/report. This matches the slug you have configured in the module_deploy.yml file.
  • Results (JSONPath): Should be $.data.*. This is needed to match the key of the root element containing the data.
  • Item Display Text (JSONPath): Should be $.name This is the attribute which is displayed on the “selection” dropdown
  • Item Value (JSONPath): Should be $.to This is the attribute which is stored in the CMDB and is passed to the Module when running the phase - so it should be in the value that you expect for your logic.

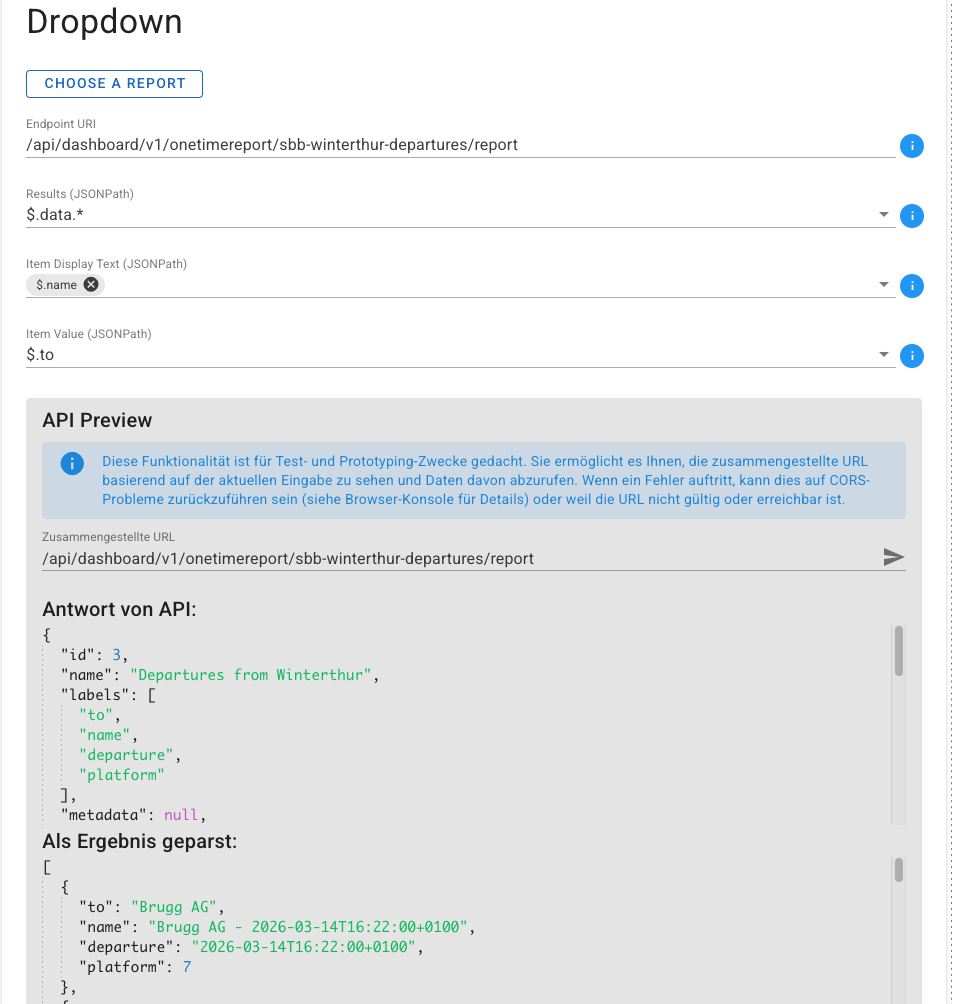

The full field should look like this.


Then, hit continue and leave the Phase empty. This is not relevant for this demo; we also do not copy the Service into the Module. If you want to try this, proceed as described in Python Service

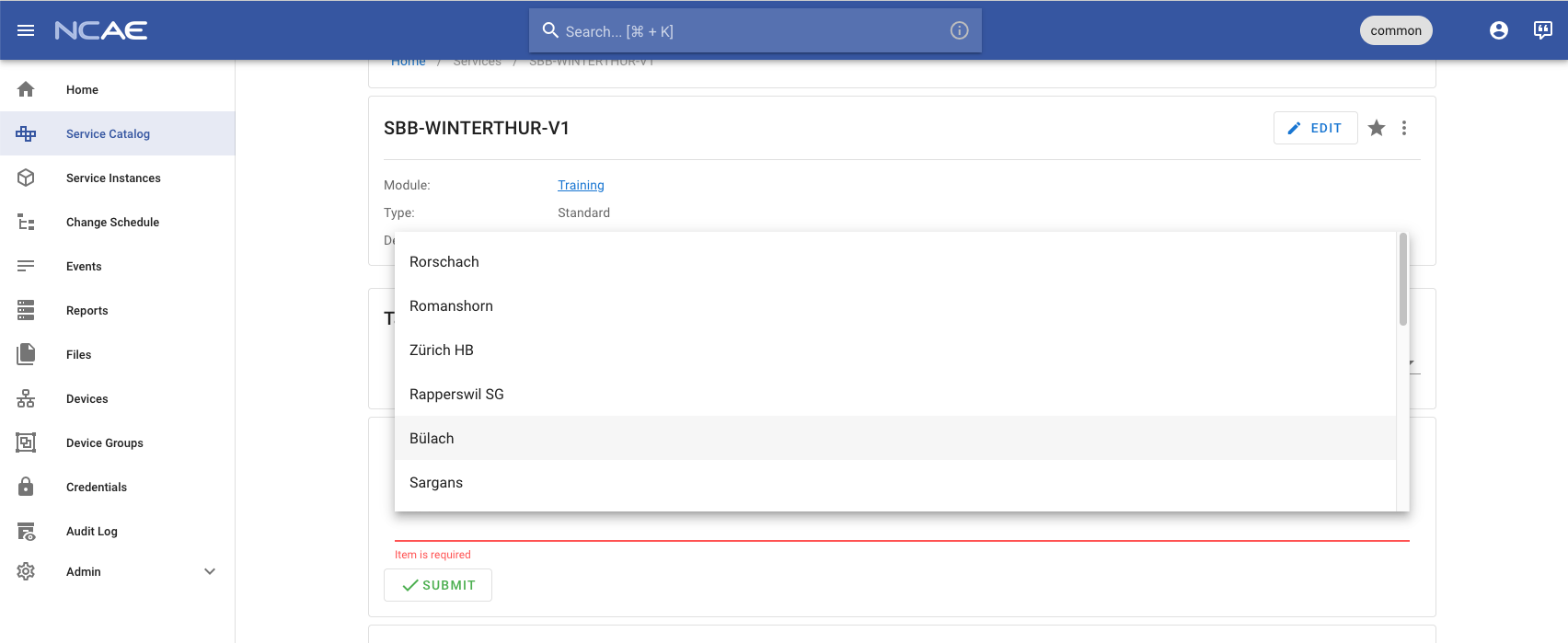

Finally, try out the new field: if fetches reports, and displays values and names as configured 🚀


Sidenote: JSONPath and report data as JSON

The trickiest bits of this is to “match” the configuration (which is mostly JSONPath) and the report. There are some helpers for this.

JSONPath is a standardized approach to parse JSON data, a nice visual representation can be found on jsonpath.com.

This raw report JSON data can be checked in these ways:

  • Easiest: click the arrow in the API Preview
  • Open the detail report and check the network tab
  • Go to the API docs (https://<your-ncae>/api/docs/) and fill in the slug of your report in the /api/dashboard/v1/onetimereport/{id} endpoint. The direct link is: https://<your-ncae>/api/docs/#/dashboard/dashboard_v1_onetimereport_retrieve

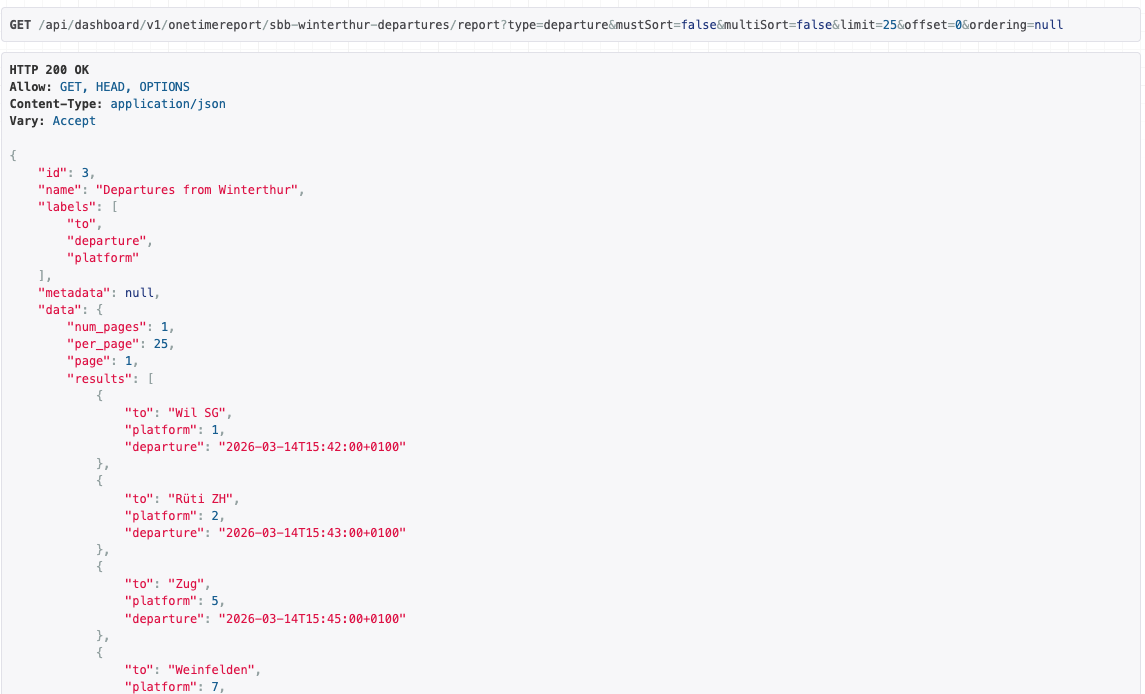

For your reference, this is the raw data of the SBB report:


Stretch goal: pass dynamic filter params

What if the data you collect in the Module requires some kind of filter so that you can fetch the correct data? Filter parameters can be passed from the synchronous report to the module. All fields provided by the Service editor can also be used to filter report data. In the report, the field which contains the fields for the filtering is called template.

Extend the module

The SBB API supports a type filter, which may be arrival or departure. Let’s add a static dropdown with these values in module_deploy.yml:

    - name: Next trains
      ansible.builtin.include_role:
        name: netcloud.ncae.module_setup
        tasks_from: report
      vars:
        module_setup_report_slug: sbb-winterthur-departures
        module_setup_report_args:
          name: Departures from Winterthur
          description: Show the next trains from Winterthur.
          ext_api_service_id: "{{ _manage_python_ext_api.service.id }}"
          path: api/example-collect/v1/trains
          use_collector: false
          send_credentials: true
          cache_time: 60
          template:
            values:
              - key: "type"
                type: "static_dropdown"
                hint: ""
                required: false
                editable: true
                shareable: false
                hidden: false
                styles: []
                defaultValue: "departure"
                dropdown:
                  values:
                  - "arrival"
                  - "departure"
                label: "Arrival or Departure?"
                name: "type"

In the logic, the parameter must be passed to the call to the SBB API. Note that the “type” is optional, so it is backward compatible. Image that some service configurations do not provide the type field. If you are the sole author and user of the report, it’s safe to change it though!

@extapi_report_route(router, "/v1/trains")
def trains_v1(ctx: ExtApiReportContext) -> ExtApiReportResponse:
    direction_type = getattr(ctx.body.query, "type", None)
    url = "https://transport.opendata.ch/v1/stationboard?station=Winterthur&limit=20"
    if direction_type:
        url += f"&type={direction_type}"

    with urllib.request.urlopen(url) as response:
        data = json.loads(response.read())
    field_data = [
        {
            "to": entry.get("to"),
            "name": f"{entry.get('to')} - {entry.get('stop', {}).get('departure')}",
            "departure": entry.get("stop", {}).get("departure"),
            "platform": entry.get("stop", {}).get("platform"),
        }
        for entry in data.get("stationboard", [])
    ]
    return ExtApiReportResponse(
        field_names=["to", "name", "departure", "platform"],
        field_data=field_data,
    )

Update NCAE

Run the commit - push - update loop again, and check your NCAE.

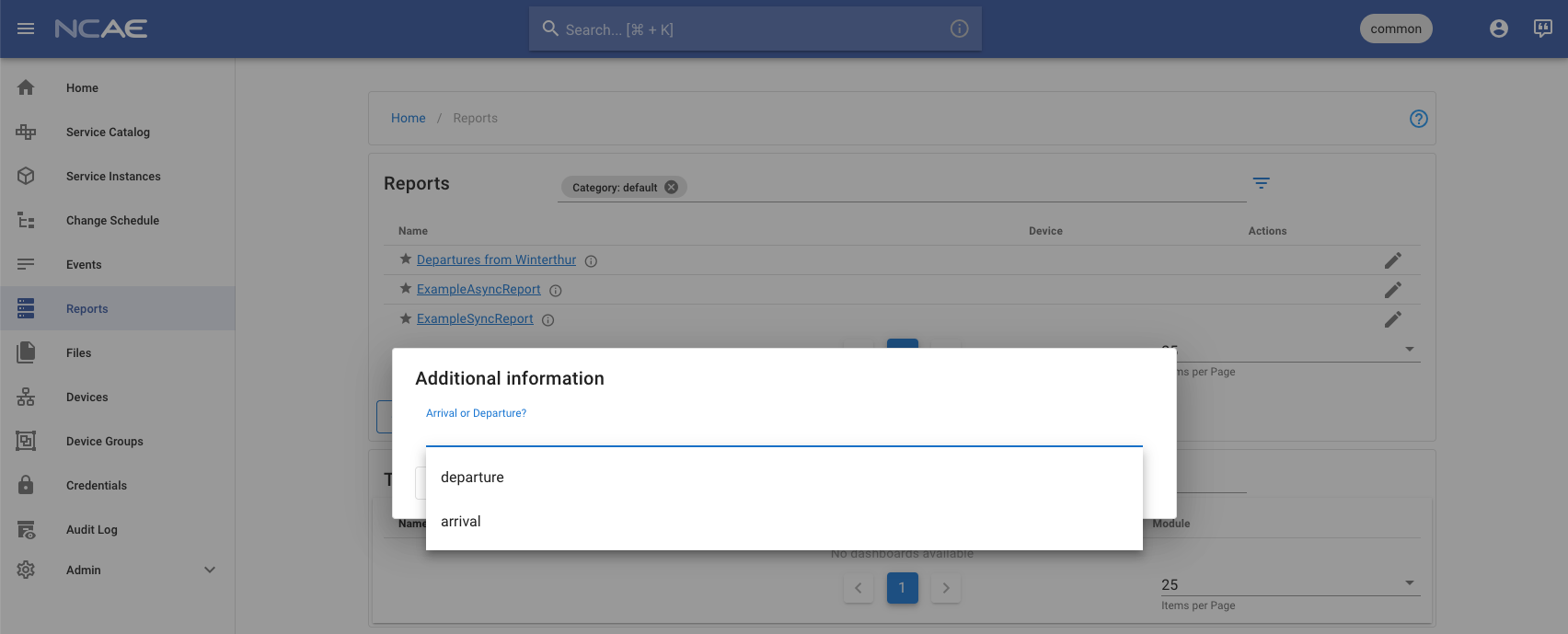

The report now asks for a filter


The Service is unchanged, and uses the default (departure).

Summary

In this task, you learned to

  • Add a synchronous report.
  • Add a service without a Phase.
  • Pre-fill values of a dropdown based on a report.
