Task 7 - Ansible Service

Goals

In this task, you will learn how to:

• Understand the project structure and execution flow of Ansible services
• Create a new Ansible playbook for automating CML
• Integrate third-party collections into your Ansible playbook
• Design a new service in NCAE which will trigger this playbook
• Hook everything together using the module setup
• Test your new Ansible-based service

Use Case

As you already know, your CML lab infrastructure consists of two routers and two switches. The goal of your next automation task is to write a small service which will automatically deploy a specific L2 VLAN onto a switch. Additionally, when retiring the service instance, the VLAN should be removed again.

Project Structure and Execution Flow

Just like in the previous task 05, the instructions will once more show screenshots from PyCharm, but you can use any IDE for your choice for developing the Ansible playbook. The first step is to create a new Ansible playbook file, which will later on be executed by NCAE when running your service.

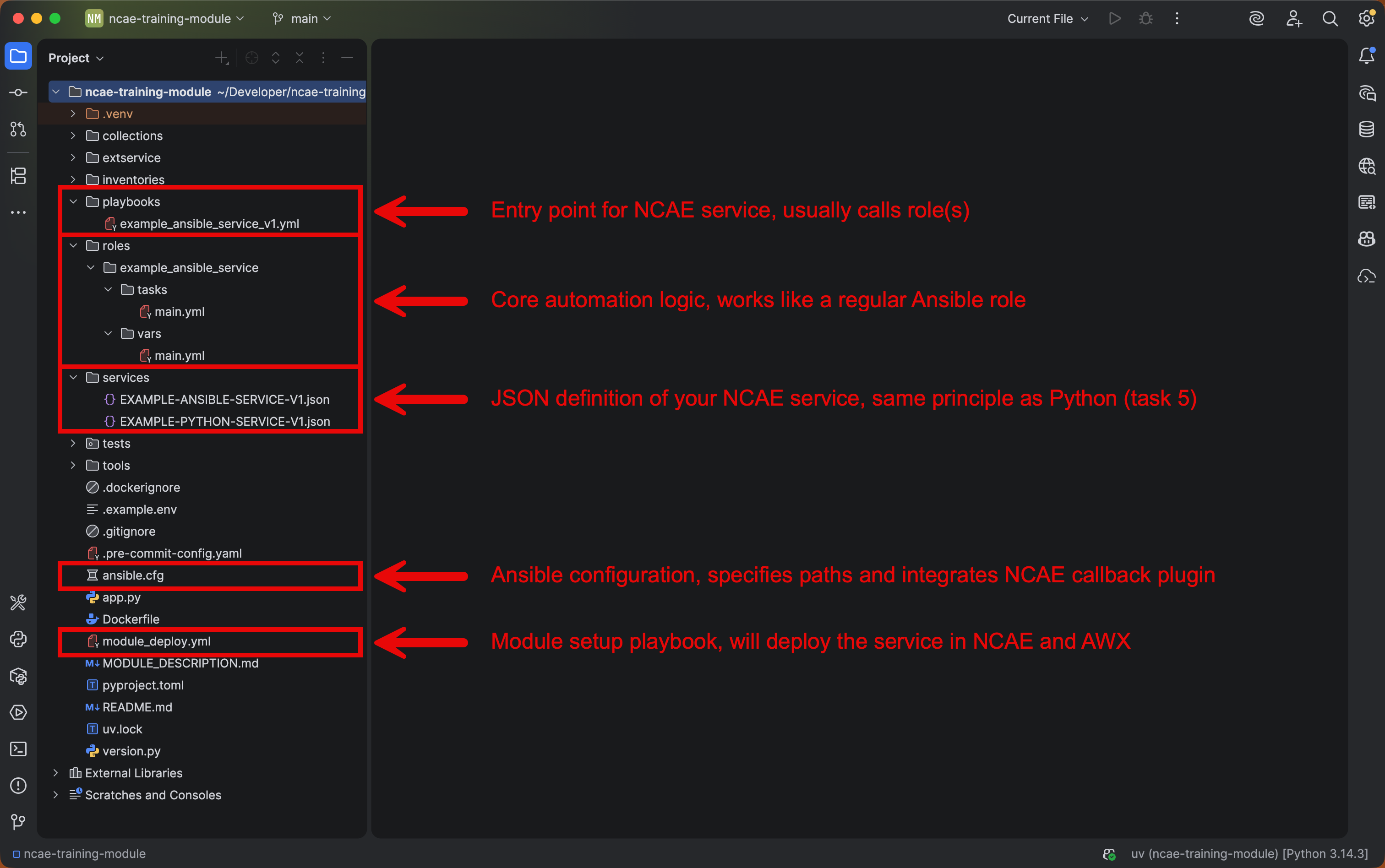

Lets start by inspecting the project structure to grasp a better understanding of it:

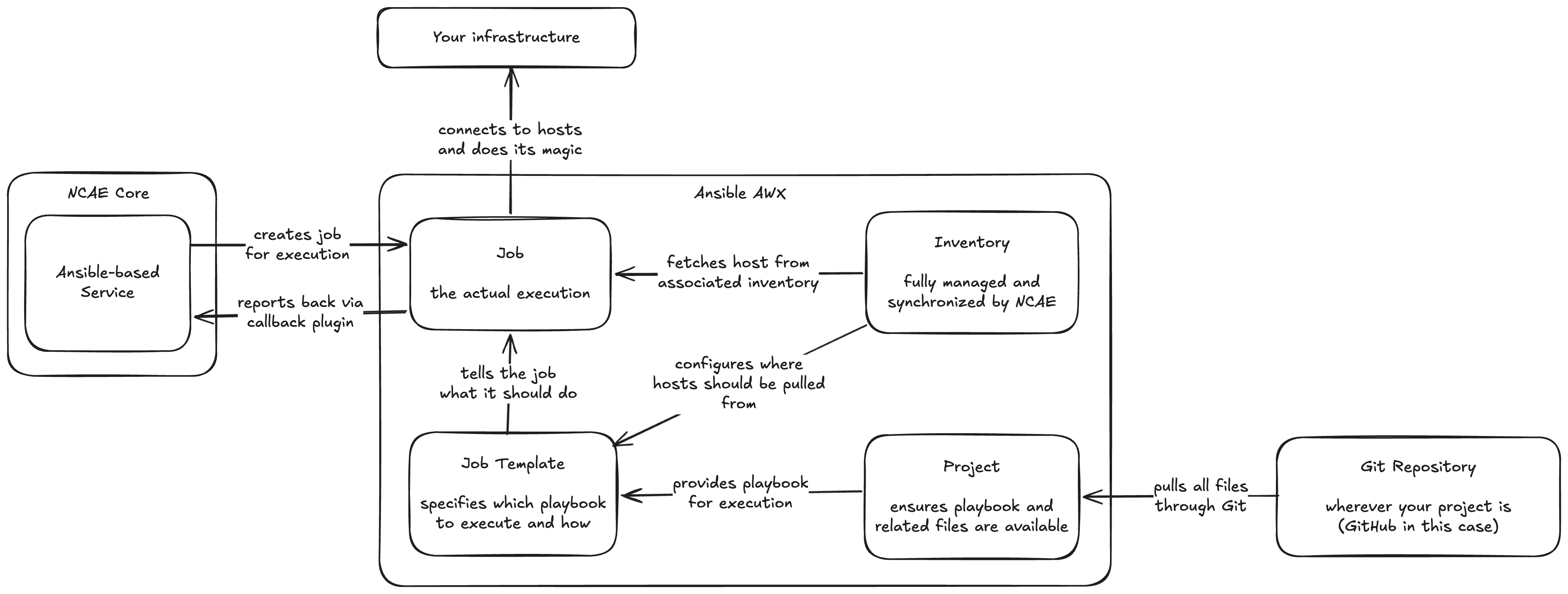

In addition to the project structure, it is also important to understand the execution flow, specifically how NCAE interacts with its integrated AWX to run your Ansible playbooks:

Create your Ansible Playbook

Now its time to actually create your Ansible-based service! Start by creating a new file in playbooks/config_vlan.yml and add the following content to it:

---
- name: VLAN Service
  hosts: all
  gather_facts: false
  vars:
    # These variables are needed for the cisco.ios collection and will vary depending on the device you're targeting
    # This is not NCAE-specific, and you can find the relevant variables for each collection in their documentation
    ansible_connection: ansible.netcommon.network_cli
    ansible_network_os: cisco.ios.ios
    ansible_become: yes
    ansible_become_method: enable
  tasks:
    - name: Execute VLAN Service
      ansible.builtin.include_role:
        name: config_vlan

As you can see, any regular Ansible Playbook can be used as-is during integration with NCAE. In this case, the playbook simply includes a role named config_vlan, to keep its content clean and modular. The next step is to create this role by following these steps:

1. Create a new directory named config_vlan in the roles directory
2. Inside the config_vlan directory, create a new directory named tasks
3. Inside the tasks directory, create a new file named main.yml
4. Add the following content to main.yml:

---
# This task only runs when the NCAE service instance is being provisioned or updated.
# Notice how 'when' is used to only run when the NCAE 'decommission' variable is not true.
- name: Configure VLAN
  cisco.ios.ios_vlans:
    state: merged
    config:
      - state: active
        vlan_id: "{{ data.vlan_id }}"
        name: "{{ data.vlan_name }}"
  when: not decommission

# This task only runs when the NCAE service instance is being decommissioned.
# Notice how 'when' is used to only run when the NCAE 'decommission' variable is true.
- name: Remove VLAN
  cisco.ios.ios_vlans:
    state: purged
    config:
      - vlan_id: "{{ data.vlan_id }}"
  when: decommission

As you can see, we are using the Cisco IOS Ansible collection configure a VLAN on the switch, along with two separate tasks for provisioning and deprovisioning the service. The two “magic” variables used in this example for NCAE integration are:

• data: This variable contains all the data from the service instance form, which will be created in the next step. In this example, we are using data.vlan_id and data.vlan_name to access the form fields for VLAN name and VLAN ID.
• decommission: This variable is a boolean which is set to true when the service instance is being deprovisioned, and false otherwise. This allows us to use the same playbook for both provisioning and deprovisioning tasks, by simply adding a when condition to the relevant tasks.

Given that our logic is quite simple, we were also able to make use of the cisco.ios collection. If you never heard of collections before, imagine it as a way to share modules / extensions for Ansible. In this case, the cisco.ios collection contains a module named ios_vlans, which allows us to easily manage VLANs on Cisco IOS devices.

Integrate Third-Party Collections

However, while the usage of cisco.ios is convenient, it is not available in Ansible by default, which means we need to add it as a dependency to our project. In order to do that, you would add the following lines to the collections/requirements.galaxy.yml file (don’t do that yet, keep on reading…):

- name: cisco.ios
  type: galaxy
  version: 9.2.0

Unfortunately things are a bit more complicated with airgapped environments, and there are actually multiple files involved:

• The collections/requirements.galaxy.yml is for your own reference and specifies what the repo should contain, but it is not used during execution.
• The collections/requirements.yml is used during execution, but it is not meant to be edited manually, as it is auto-generated by the Ansible Galaxy CLI.
• The collections/requirements.yml will point to local TAR archives stored in the collections/ directory, which means you will need to download the relevant collections as TAR files and place them accordingly.

Normally we would now advise you to:

1. Add the beforementioned lines to collections/requirements.galaxy.yml
2. Run our helper script tools/update-collection.sh to automatically update everything

This would however require your machine to have a Bash shell as well as access to the Ansible CLI tooling. To simplify things for you, we have prepared an archive which you can download, extract and copy into your collections/ directory, overwriting any existing files:

Download Collections Archive

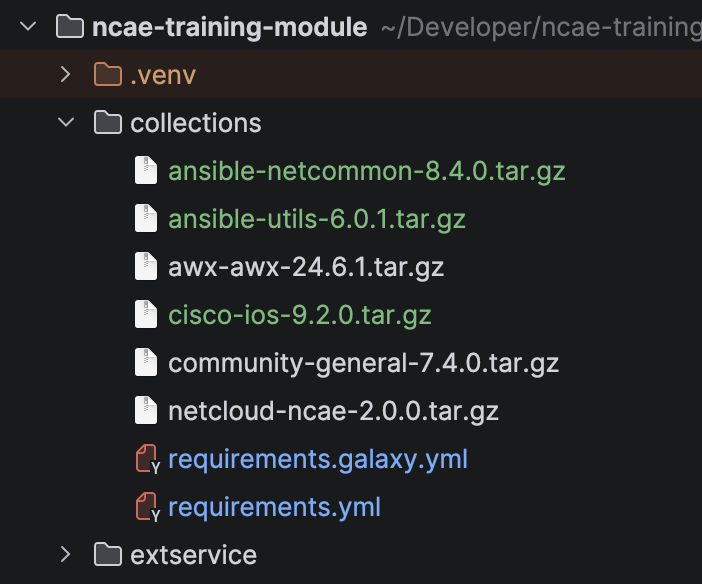

Once completed, your file structure should be looking like this, showing the additional IOS collection in place, along with its internal dependencies.

With a keen eye, you might have also spotted that we ship our own netcloud.ncae collection, which helps with the integration of NCAE-specific features into your Ansible playbooks.

Create a new Service in NCAE

Now that we have our Ansible playbook ready, it’s time to create a new service in NCAE which will execute it. This process is quite similar to the previous task 05, so we will abbreviate some of the steps and focus on the new ones:

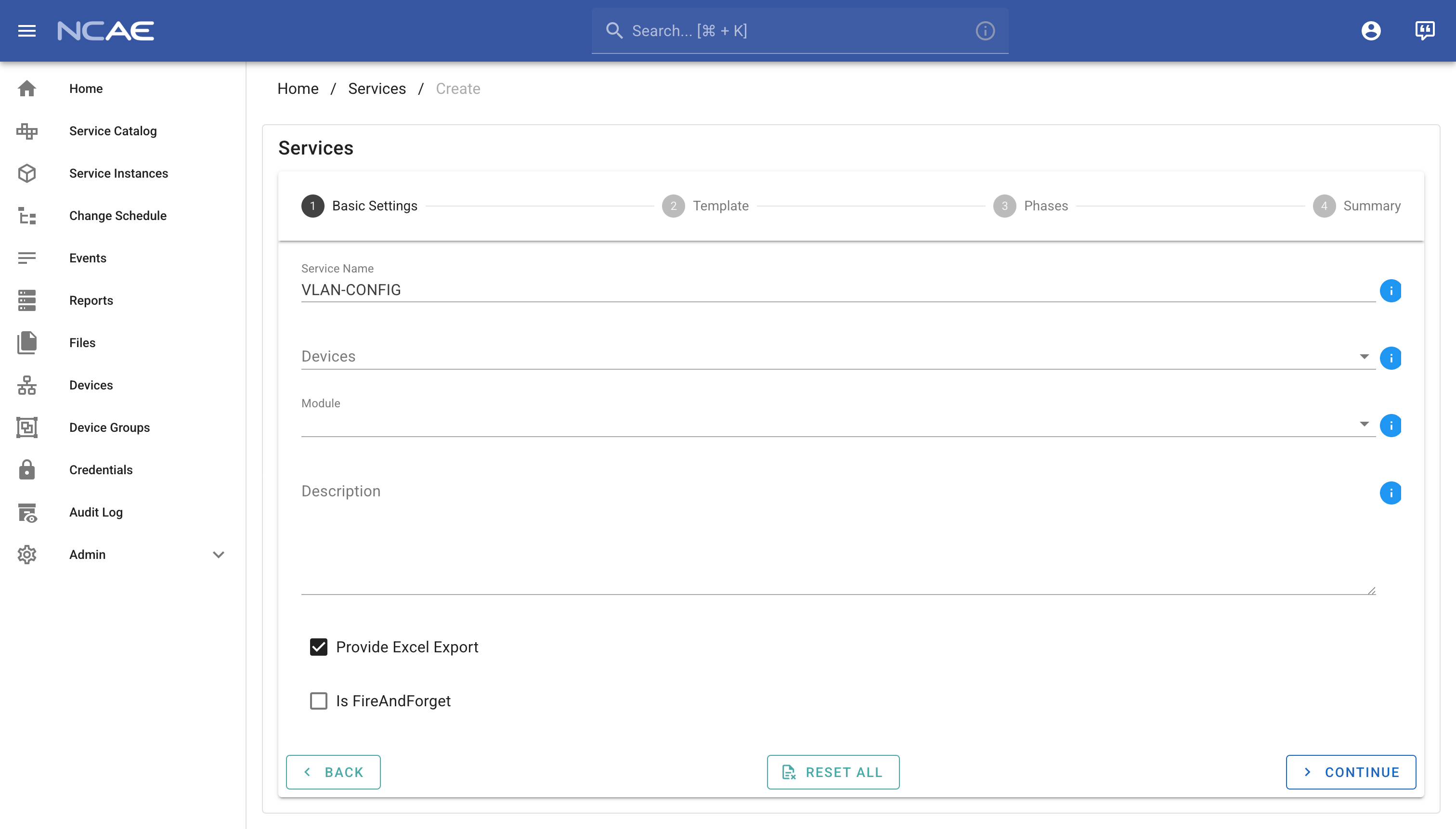

1. Create a new service in NCAE named VLAN-CONFIG or something similar

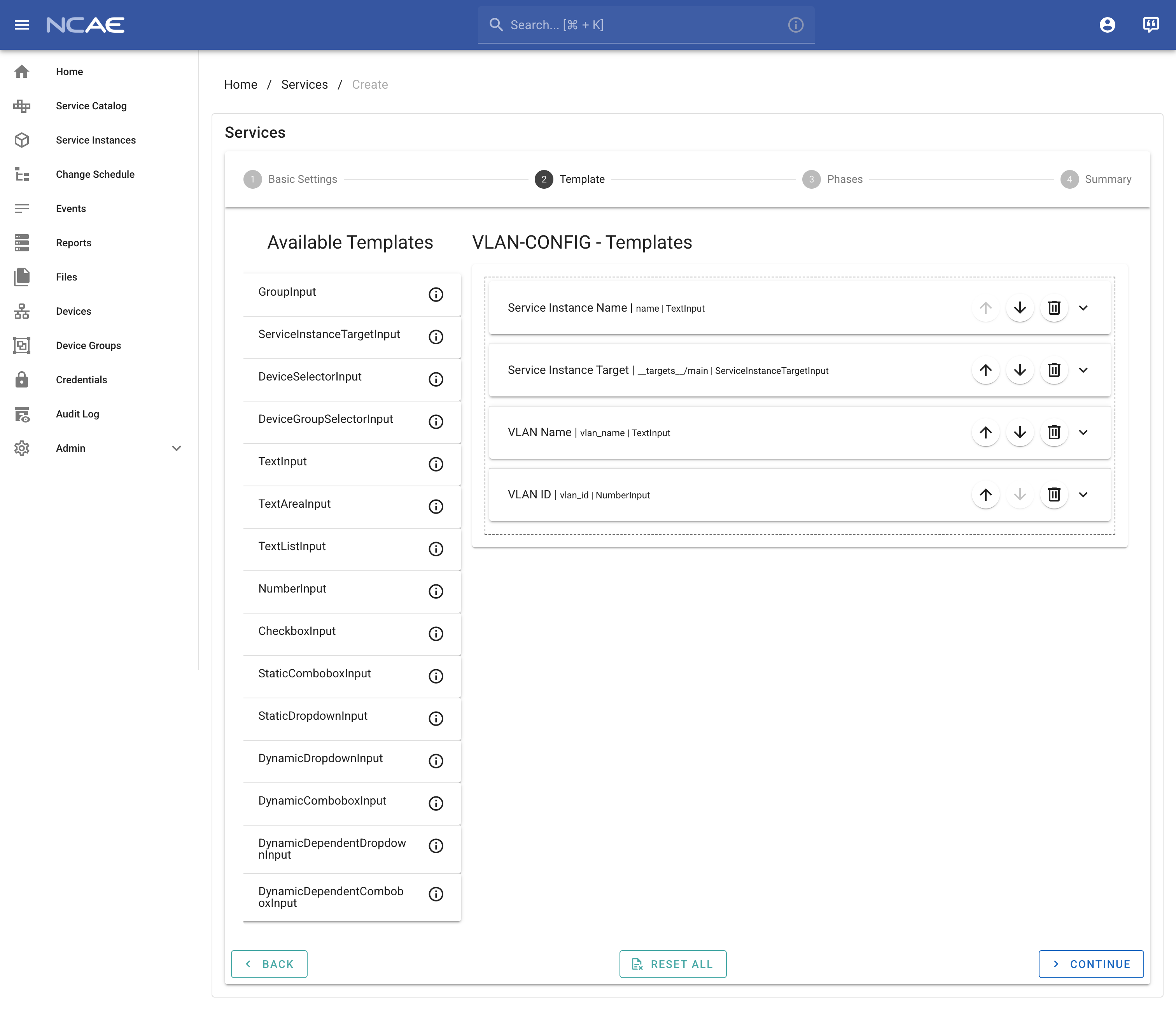

2. In the template section, add these three fields to your service template
   • ServiceInstanceTargetInput with default settings
   • TextInput with label VLAN Name, name vlan_name and both Required and Editable
   • NumberInput with label VLAN ID, name vlan_id and both Required and Editable

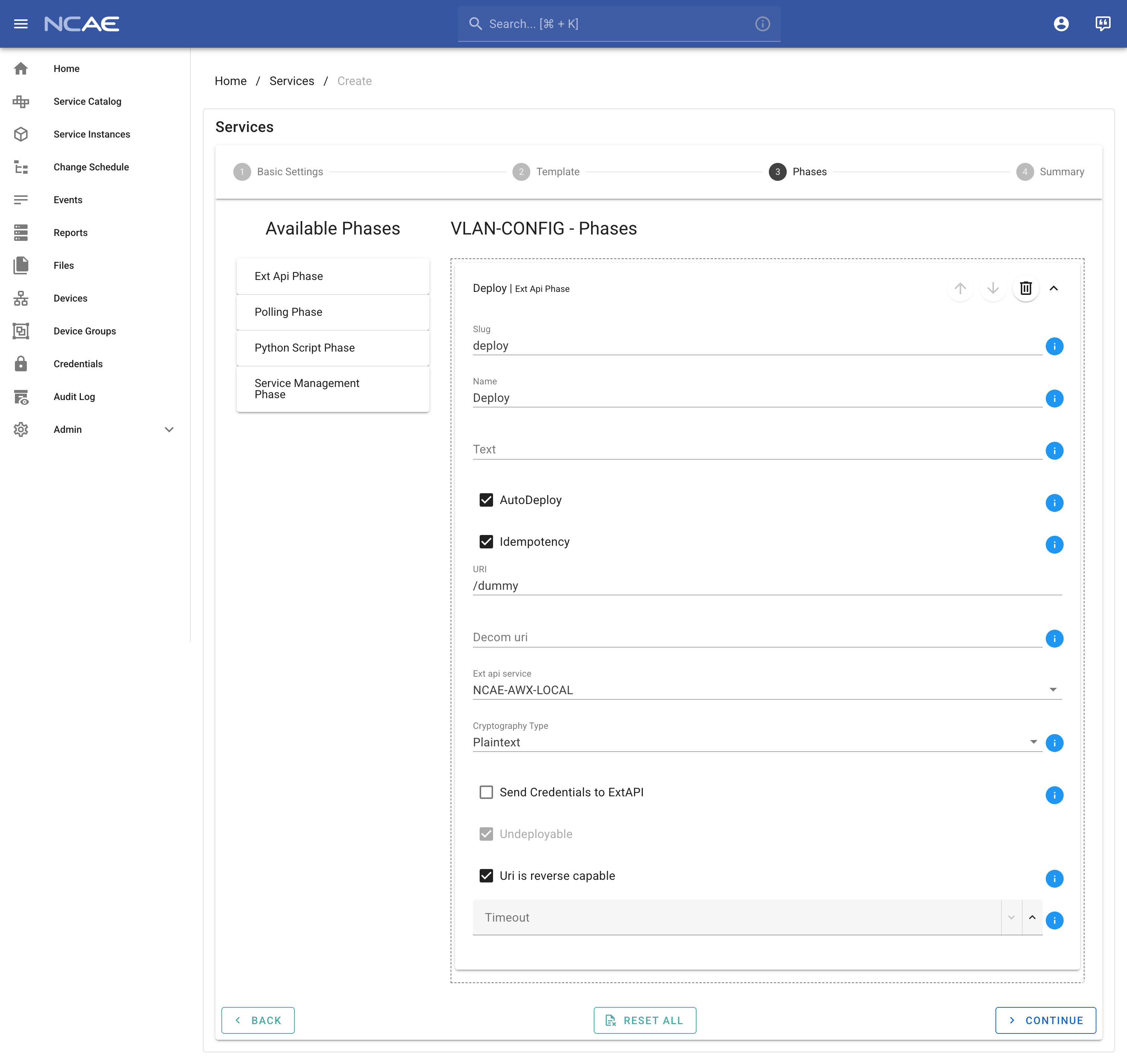

3. In the phases section, add one phase of type Ext Api Phase with these details:
   • Slug: should be deploy
   • Name: should be Deploy
   • Auto Deploy: should be enabled
   • Idempotency: should be enabled
   • URI: should be /dummy (does not matter for Ansible phases)
   • Ext api service: should be NCAE-AWX-LOCAL
   • Uri is reverse capable: should be enabled

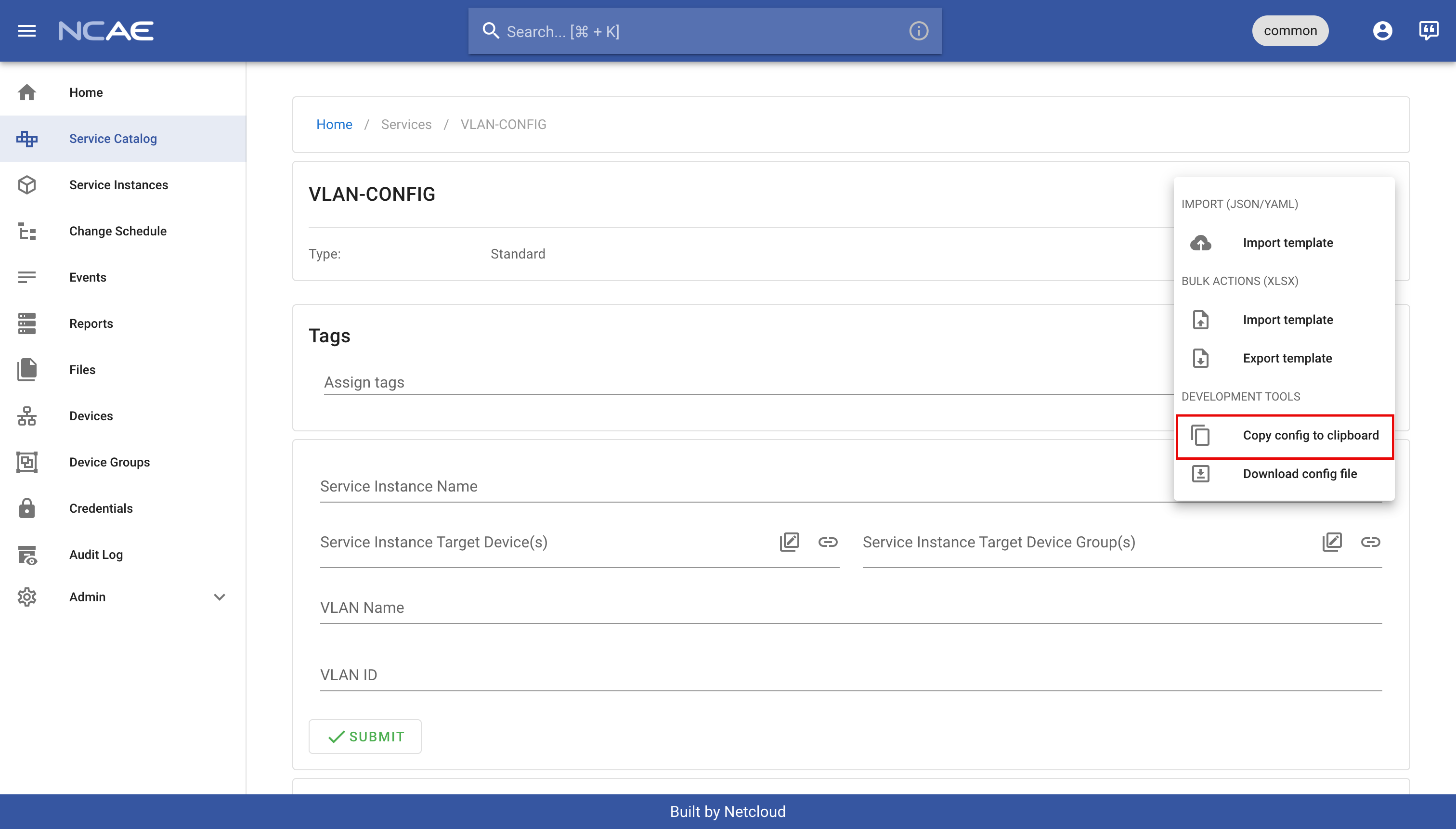

4. Confirm creating the service and copy its configuration as learned in Task 05, meaning click the three-dot menu on the top right of your service page, then click Copy config to clipboard.

For your reference, here are also some screenshots showcasing this process:

With the service configuration in your clipboard, create a services/VLAN-CONFIG.json file in your project and paste the configuration there. To reiterate, you’ve:

• Written an Ansible playbook and role for your use case
• Integrated a third-party collection into your project
• Created a new service in NCAE and copied its configuration into your project

Hook Everything Together

The remaining step is to update the module setup playbook, stored in module_deploy.yml in the repository root, to actually deploy your Ansible-based service to the NCAE. Similar to a Python based service, you will need to insert an additional task into this file, preferably below the EXAMPLE-ANSIBLE-SERVICE-V1 task:

---
- name: NCAE Module Setup
  hosts: localhost
  gather_facts: false
  tasks:
    # ... previous tasks like module setup, inventory, and so on ...
    # ... technically the order does not matter, and you can place this new task anywhere ...
    # ... however, for cleanliness, it may make sense to put it below "EXAMPLE-ANSIBLE-SERVICE-V1" ...

    ###############################################
    ########## ONLY COPY BELOW THIS LINE ##########
    ###############################################
    - name: Manage Manage VLAN-CONFIG service
      ansible.builtin.include_role:
        name: netcloud.ncae.module_setup
        tasks_from: service
      vars:
        module_setup_service_data: "{{ lookup('file', 'services/VLAN-CONFIG.json') | from_json }}"
        module_setup_service_awx_phase_map:
          deploy:
            playbook: playbooks/config_vlan.yml
            inventory_id: "{{ _manage_device_inventory.inventory.id }}"

Lets discuss the most important lines of this task:

• module_setup_service_data must point to the JSON file containing your service configuration, just like with any other service, e.g. a Python-based one.
• module_setup_service_awx_phase_map is used to map specific phases (identified by their slug, which in your case was deploy) to specific playbooks and inventories in AWX.
• playbook parameter should point to the playbook you want to execute for this phase, which in this case is the playbook we created earlier at playbooks/vlan.yml.
• inventory_id parameter does not have to be changed by you, as it is already properly set up earlier in the module setup, so "{{ _manage_device_inventory.inventory.id }}" will be the correct choice in 99% of choices.

You may now commit all your changes and push them to the Git repository, using the same steps as in Task 05. Once your changes are in the repository, head to “Admin -> Modules” in the NCAE UI and update your module to the latest version in the same way too.

Geeky Details about Module Setup and AWX Integration

As you’ve learned so far, the execution of Ansible works through an ExtApiService phase as well, just like a Python executor. A reason behind this is that our job API is compatible with the AWX API for submitting jobs, which means that the same API payload can be used for this matter.

There is however the technical challenge that AWX does not offer the choice to simply run playbooks - instead, before any kind of execution happens, a job template has to exist. The module setup role takes care of this task, by automatically creating a job template for each mapped phase, and linking it to the relevant playbook and inventory.

Additionally, the same module setup role will also update the phase URL for each mapped phase, which is why you were able to simply specify /dummy earlier on - it will be automatically set to the right URL to call a specific job template in AWX.

Test your Service

Now that everything is set up, you can finally test your new Ansible-based service! Start by creating a new instance of your service, fill in the form fields with the relevant VLAN name and VLAN ID, and then click “Deploy”.

You should see the playbook being executed in AWX, and if you check your switch, the VLAN should be created as well. Finally, try decommissioning the service instance and check if the VLAN is removed again. If everything works as expected, congratulations on successfully creating your first Ansible-based service in NCAE!

As a reminder, here are the details for accessing your lab infrastructure:

Bonus Task

Your current automation adjusts the VLAN configuration on the switch, but the changes are only in the running configuration and will be lost after a reboot.

Check out the documentation for the cisco.ios.ios_config module and find out if you can adjust your playbook to also save the configuration.

Hint: There is a specific example available in the documentation, you just have to find and adapt it.
